Officina Mariani - Morsetti e Accessori per Autocentranti
Kitagawa

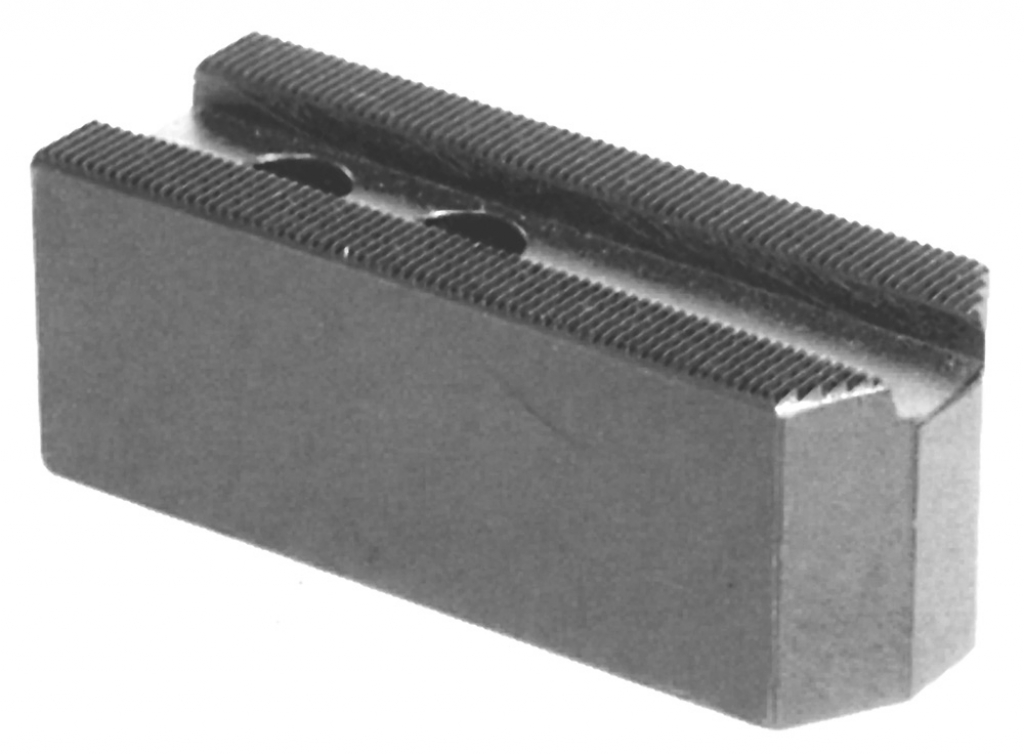

Morsetti standard

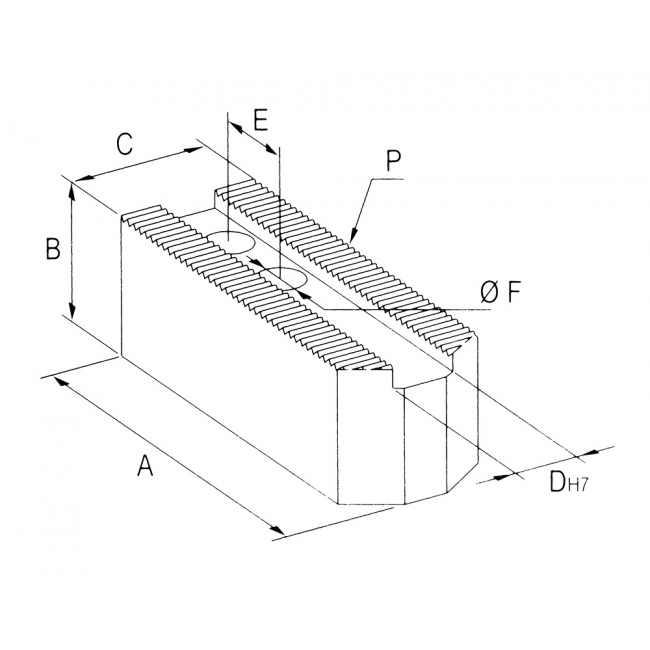

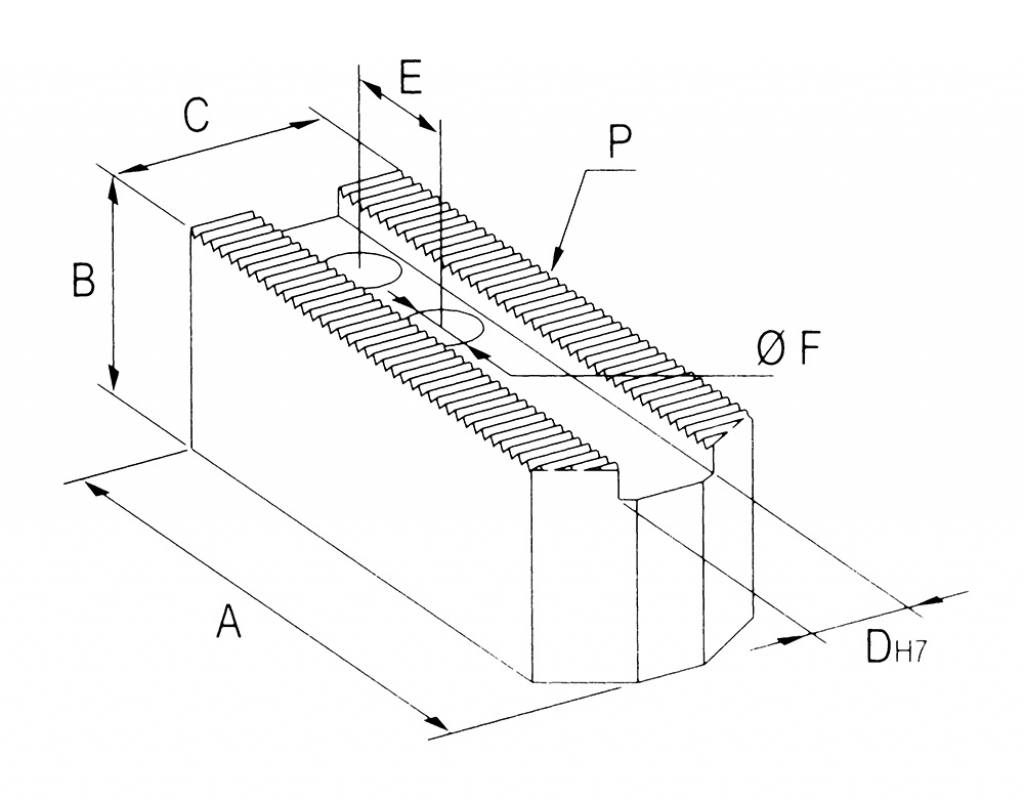

| Ø autocentrante | A | B | C | Dh7 | E | Ø F | P |
|---|---|---|---|---|---|---|---|
| Ø autocentrante 110 (4'') | A 55 | B 25 | C 25 | Dh7 10 | E 14 | Ø F 8,5 | P 1,5x60° |
| Ø autocentrante 125 (5'') | A 62 | B 25 | C 25 | Dh7 10 | E 19 | Ø F 8,5 | P 1,5x60° |
| Ø autocentrante 152 (6'') | A 72 | B 30 | C 30 | Dh7 12 | E 20 | Ø F 11 | P 1,5x60° |
| Ø autocentrante 203 (8'') | A 95 | B 40 | C 40 | Dh7 14 | E 25 | Ø F 13 | P 1,5x60° |
| Ø autocentrante 254 (10'') | A 110 | B 40 | C 40 | Dh7 16 | E 30 | Ø F 13 | P 1,5x60° |
| Ø autocentrante 305 (12'') | A 125 | B 50 | C 50 | Dh7 18 | E 30 | Ø F 15 | P 1,5x60° |
| Ø autocentrante 305 (12'') | A 125 | B 50 | C 50 | Dh7 21 | E 30 | Ø F 17 | P 1,5x60° |
| Ø autocentrante 381 (15'') | A 165 | B 60 | C 60 | Dh7 22 | E 43 | Ø F 21 | P 1,5x60° |
| Ø autocentrante 381 (15'') | A 165 | B 60 | C 60 | Dh7 25,5 | E 43 | Ø F 21 | P 1,5x60° |
| Ø autocentrante 457 (18'') | A 180 | B 70 | C 70 | Dh7 25 | E 60 | Ø F 21 | P 3x60° |
