Autoblok-SMW

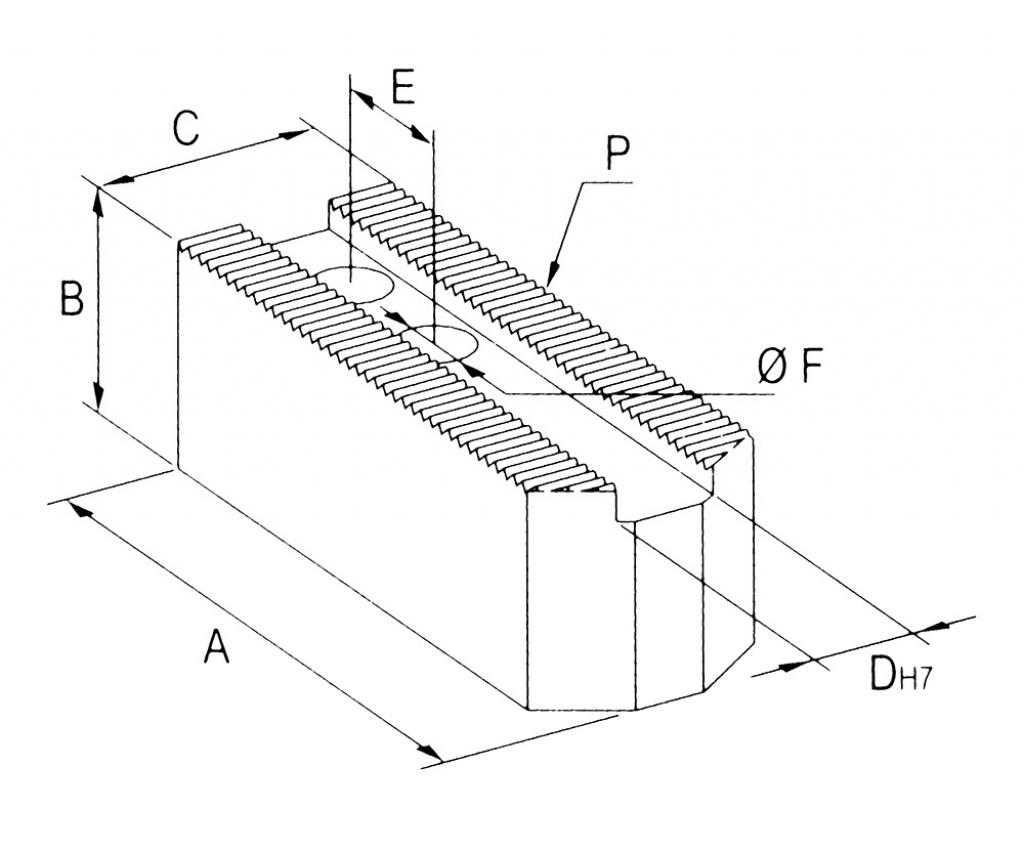

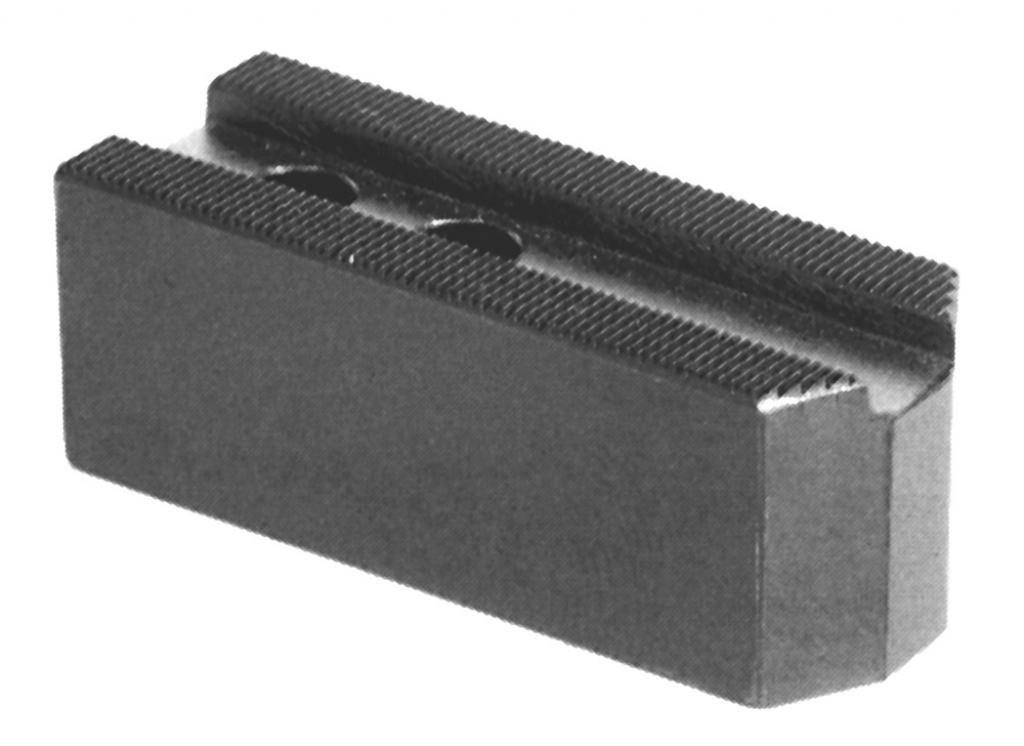

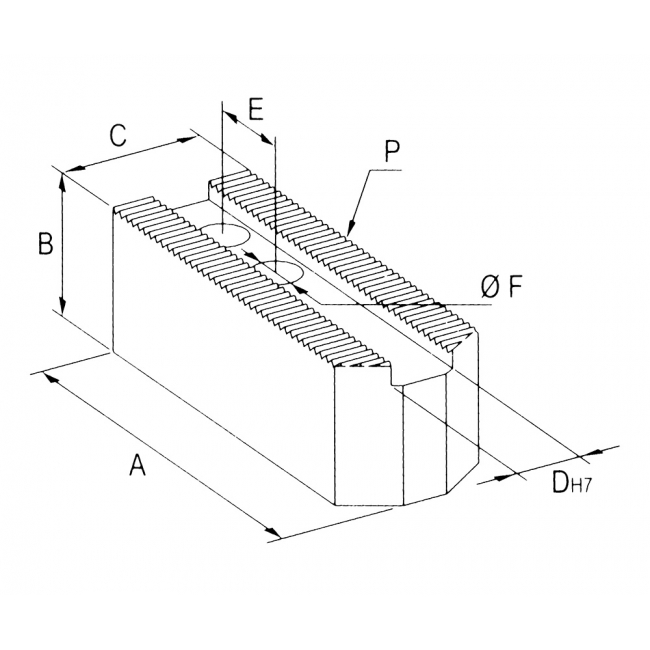

Standard jaws serration P=1,5x60°
| Ø autocentrante | A | B | C | Dh7 | E | Ø F | P |
|---|---|---|---|---|---|---|---|
| Ø autocentrante 125-130-140 | A 60 | B 30 | C 30 | Dh7 12 | E 16 | Ø F 9 | P 1,5x60° |
| Ø autocentrante 165-170 | A 72 | B 30 | C 30 | Dh7 12 | E 20 | Ø F 11 | P 1,5x60° |
| Ø autocentrante 165-170 | A 80 | B 35 | C 35 | Dh7 14 | E 16,5 | Ø F 11 | P 1,5x60° |
| Ø autocentrante 210 | A 95 | B 40 | C 40 | Dh7 14 | E 25 | Ø F 13 | P 1,5x60° |
| Ø autocentrante 210 | A 90 | B 40 | C 40 | Dh7 17 | E 23 | Ø F 13 | P 1,5x60° |
| Ø autocentrante 250 | A 110 | B 40 | C 40 | Dh7 16 | E 30 | Ø F 13 | P 1,5x60° |
| Ø autocentrante 250 | A 110 | B 50 | C 50 | Dh7 21 | E 30 | Ø F 17 | P 1,5x60° |
| Ø autocentrante 305-315 | A 125 | B 50 | C 50 | Dh7 21 | E 30 | Ø F 17 | P 1,5x60° |
| Ø autocentrante 400 | A 140 | B 60 | C 60 | Dh7 21 | E 34 | Ø F 17 | P 1,5x60° |
