Berg

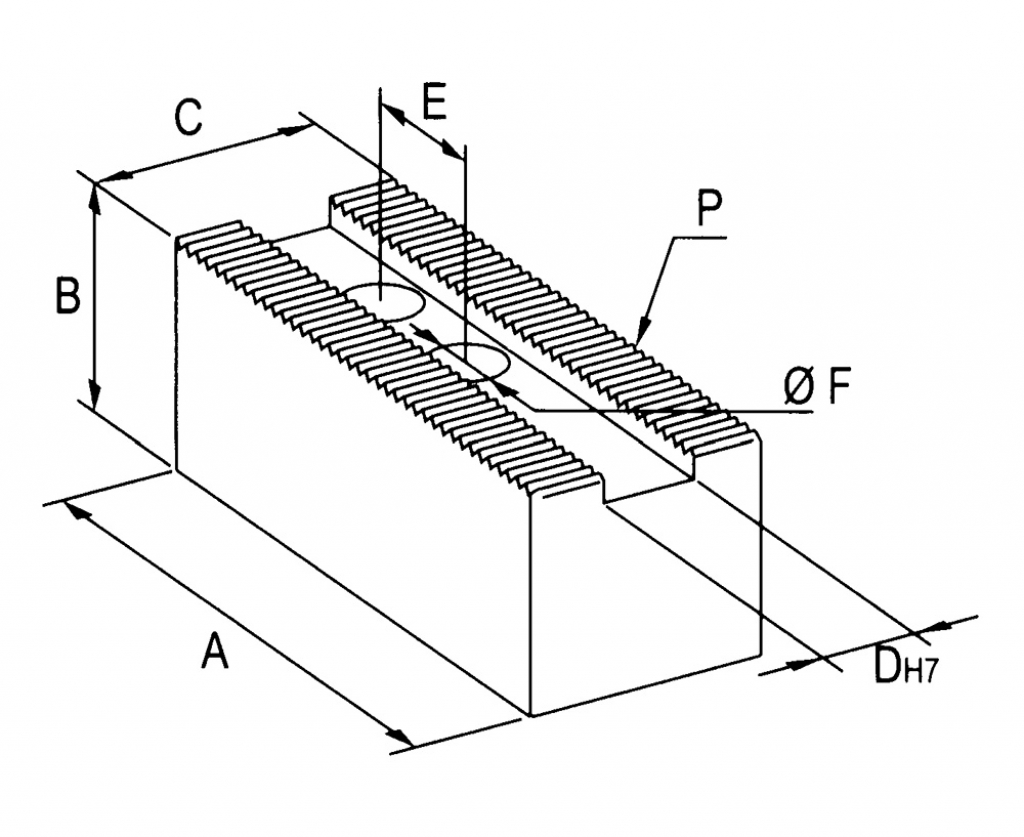

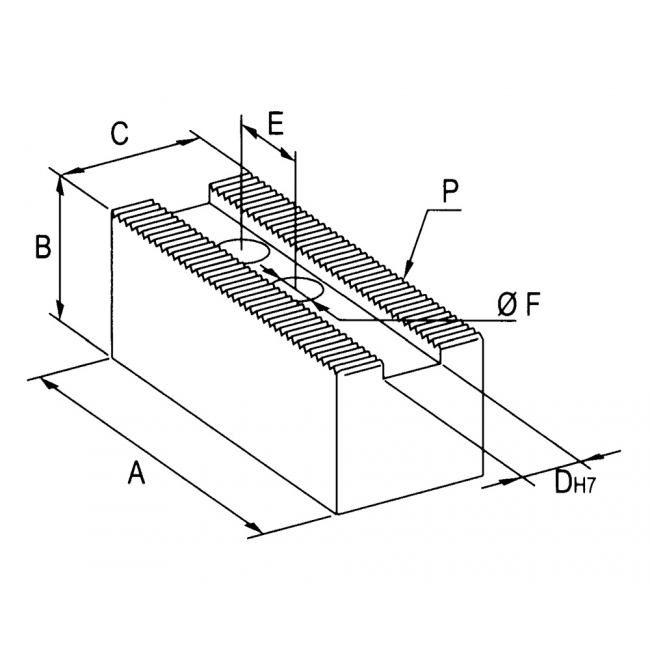

Pneumatic-hydraulic serration P=1/16''x90°
| Ø autocentrante | A | B | C | Dh7 | E | Ø fori | P |
|---|---|---|---|---|---|---|---|
| Ø autocentrante 110 | A 55 | B 35 | C 25 | Dh7 8 | E 14 | Ø fori 9 | P 1/16''x90° |
| Ø autocentrante 140-160 | A 70 | B 45 | C 25 | Dh7 10 | E 19 | Ø fori 11 | P 1/16''x90° |
| Ø autocentrante 175-200 | A 84 | B 45 | C 30 | Dh7 12 | E 21 | Ø fori 13 | P 1/16''x90° |
| Ø autocentrante 175-200 | A 90 | B 60 | C 30 | Dh7 12 | E 21 | Ø fori 13 | P 1/16''x90° |
| Ø autocentrante 250-315 | A 110 | B 60 | C 40 | Dh7 16 | E 29 | Ø fori 17 | P 1/16''x90° |
| Ø autocentrante 250-315 | A 150 | B 60 | C 40 | Dh7 16 | E 29 | Ø fori 17 | P 1/16''x90° |
| Ø autocentrante 400-500-630 | A 150 | B 80 | C 50 | Dh7 20 | E 38 | Ø fori 22 | P 3/32''x90° |
