Officina Mariani - Jaws e Accessories per self-centering chunks
Rohm

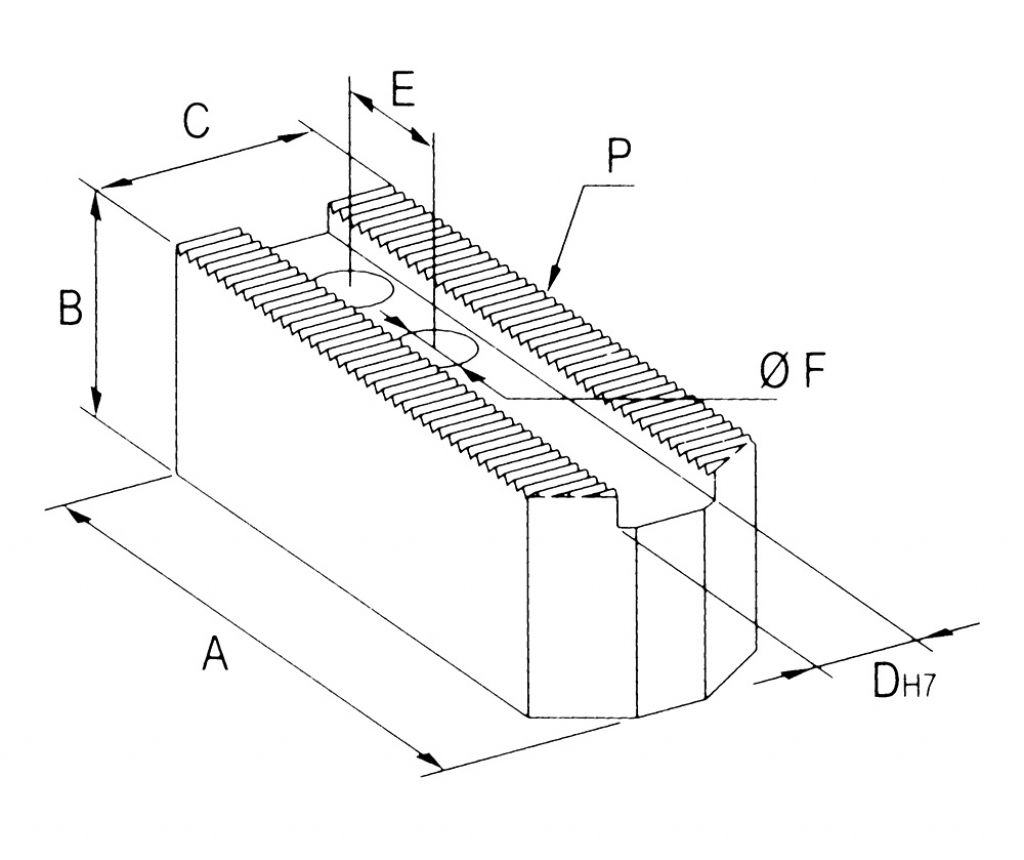

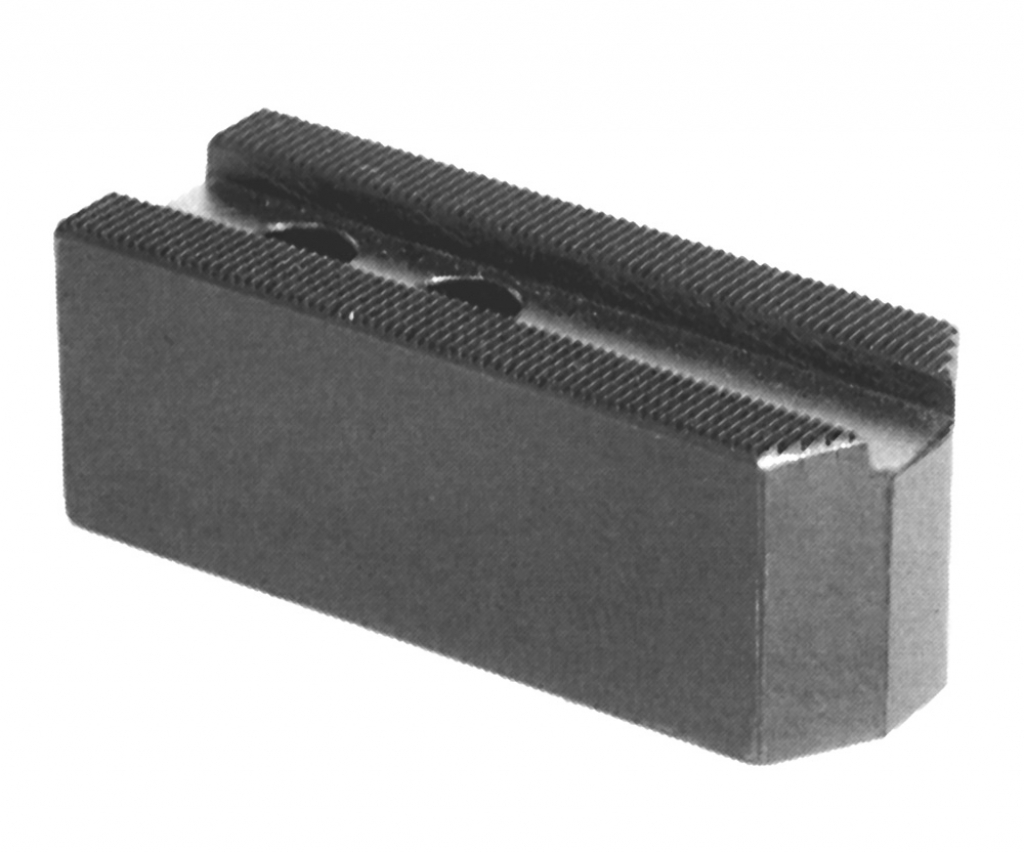

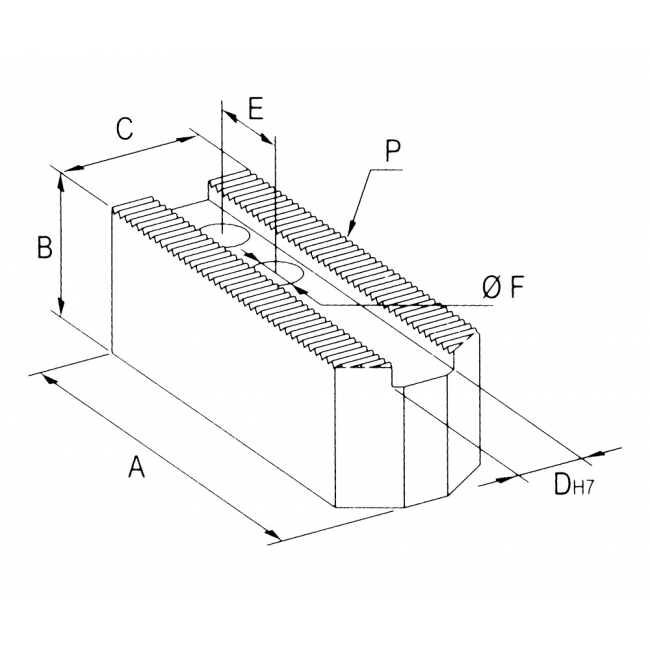

Pneumatic hydraulic serration 1,5x60°
| Ø AUT. | A | B | C | Dh7 | E | Ø F | P |
|---|---|---|---|---|---|---|---|
| Ø AUT. 105 | A 53 | B 20 | C 20 | Dh7 10 | E 15 | Ø F 9 | P 1,5x60° |
| Ø AUT. 130 | A 53 | B 25 | C 25 | Dh7 11 | E 15 | Ø F 9 | P 1,5x60° |
| Ø AUT. 160 | A 67 | B 30 | C 30 | Dh7 11 | E 20 | Ø F 9 | P 1,5x60° |
| Ø AUT. 215 | A 90 | B 40 | C 40 | Dh7 14 | E 26 | Ø F 11 | P 1,5x60° |
| Ø AUT. 250 | A 90 | B 50 | C 50 | Dh7 20 | E 26 | Ø F 13 | P 1,5x60° |
| Ø AUT. 280 | A 90 | B 50 | C 50 | Dh7 20 | E 26 | Ø F 13 | P 1,5x60° |
| Ø AUT. 315 | A 120 | B 50 | C 50 | Dh7 21 | E 28 | Ø F 15 | P 1,5x60° |
| Ø AUT. 350 | A 120 | B 50 | C 50 | Dh7 21 | E 28 | Ø F 17 | P 1,5x60° |
