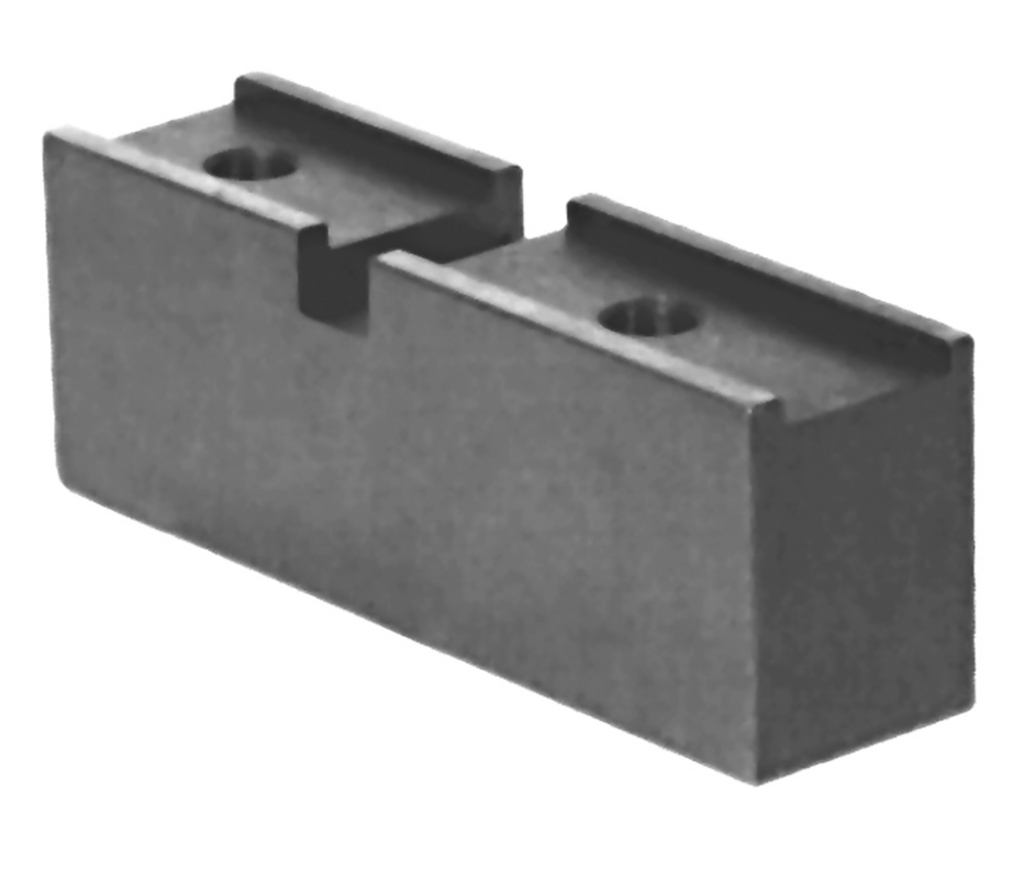

Manual triblok type C

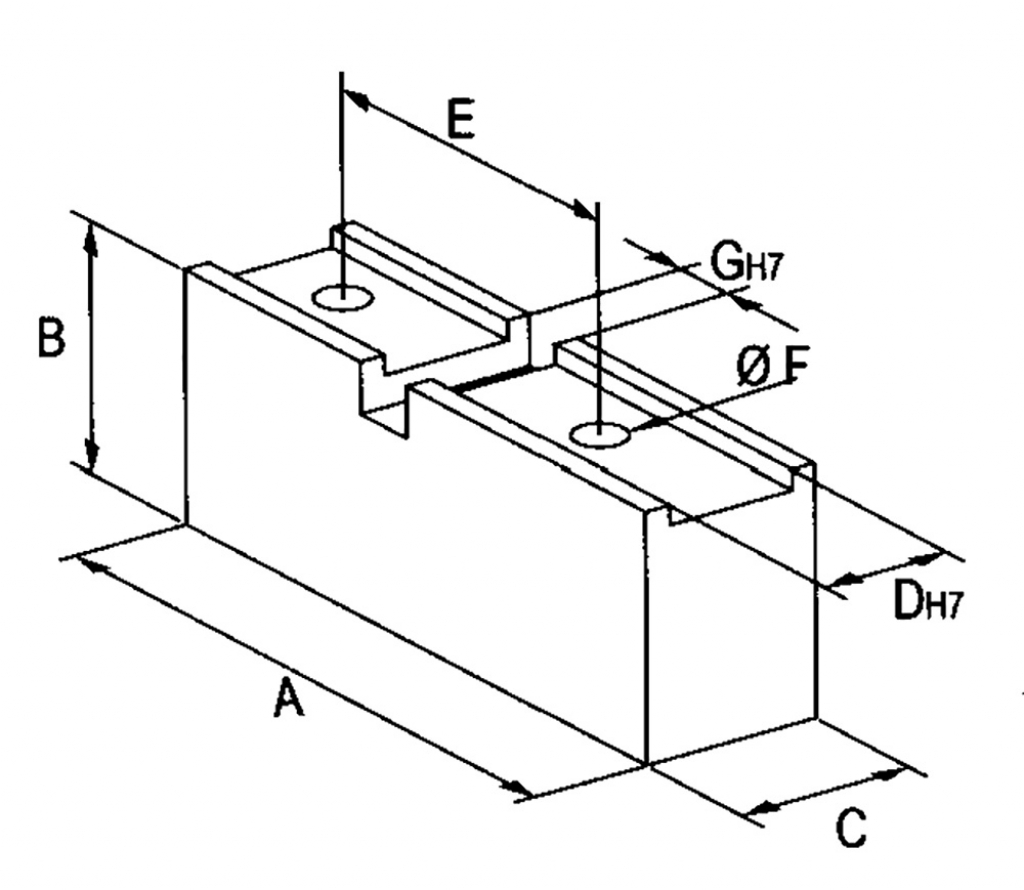

| Ø AUT. | A | B | C | Dh7 | Gh7 | E | Ø F |
|---|---|---|---|---|---|---|---|
| Ø AUT. 100 | A 50 | B 30 | C 20 | Dh7 12 | Gh7 6 | E 20 | Ø F 7 |
| Ø AUT. 125 | A 65 | B 30 | C 25 | Dh7 16 | Gh7 6 | E 20 | Ø F 9 |
| Ø AUT. 160 | A 70 | B 30 | C 25 | Dh7 16 | Gh7 6 | E 20 | Ø F 9 |
| Ø AUT. 175-200 | A 90 | B 45 | C 30 | Dh7 19 | Gh7 8 | E 26 | Ø F 9 |
| Ø AUT. 225-250 | A 110 | B 50 | C 30 | Dh7 22 | Gh7 10-12 | E 32 | Ø F 11 |
| Ø AUT. 275-315 | A 130 | B 60 | C 35 | Dh7 27 | Gh7 12 | E 38 | Ø F 13 |
| Ø AUT. 350-400 | A 160 | B 70 | C 40 | Dh7 32 | Gh7 16 | E 48 | Ø F 17 |
| Ø AUT. 450 | A 200 | B 80 | C 50 | Dh7 38 | Gh7 16 | E 60 | Ø F 17 |
