Officina Mariani - Jaws e Accessories per self-centering chunks
Omap TRIBLOK - GFB

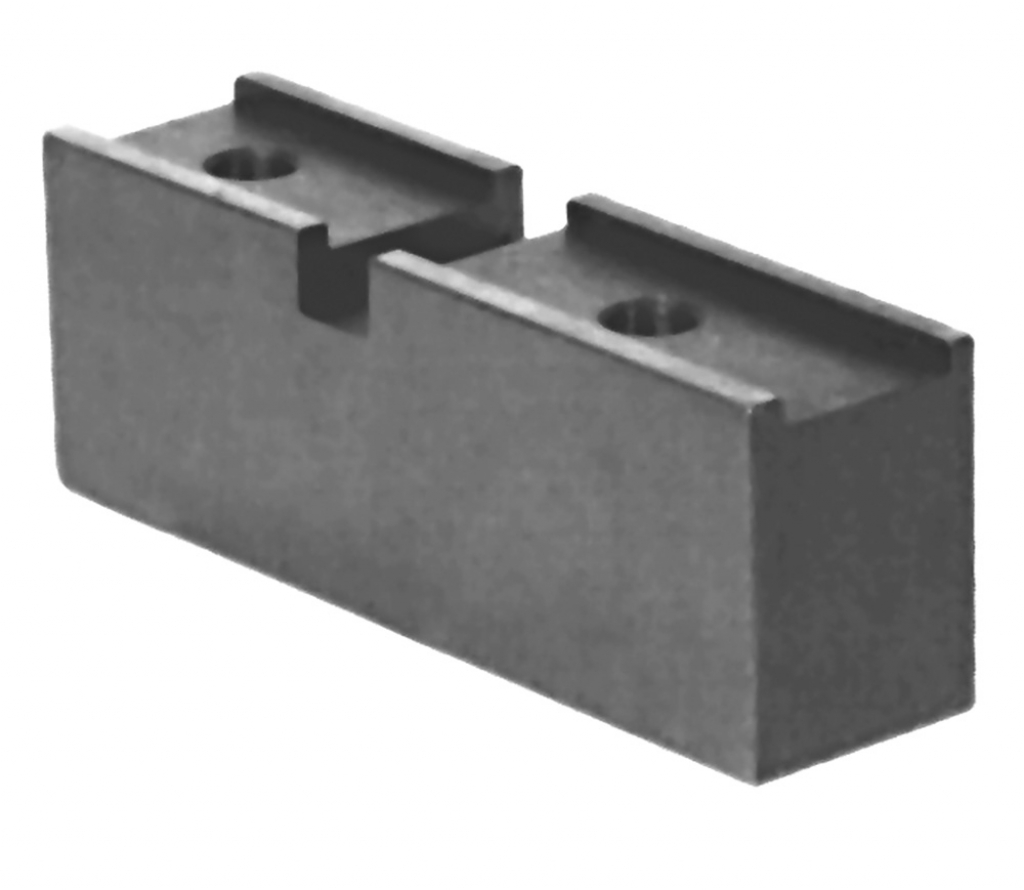

Manual triblok type B

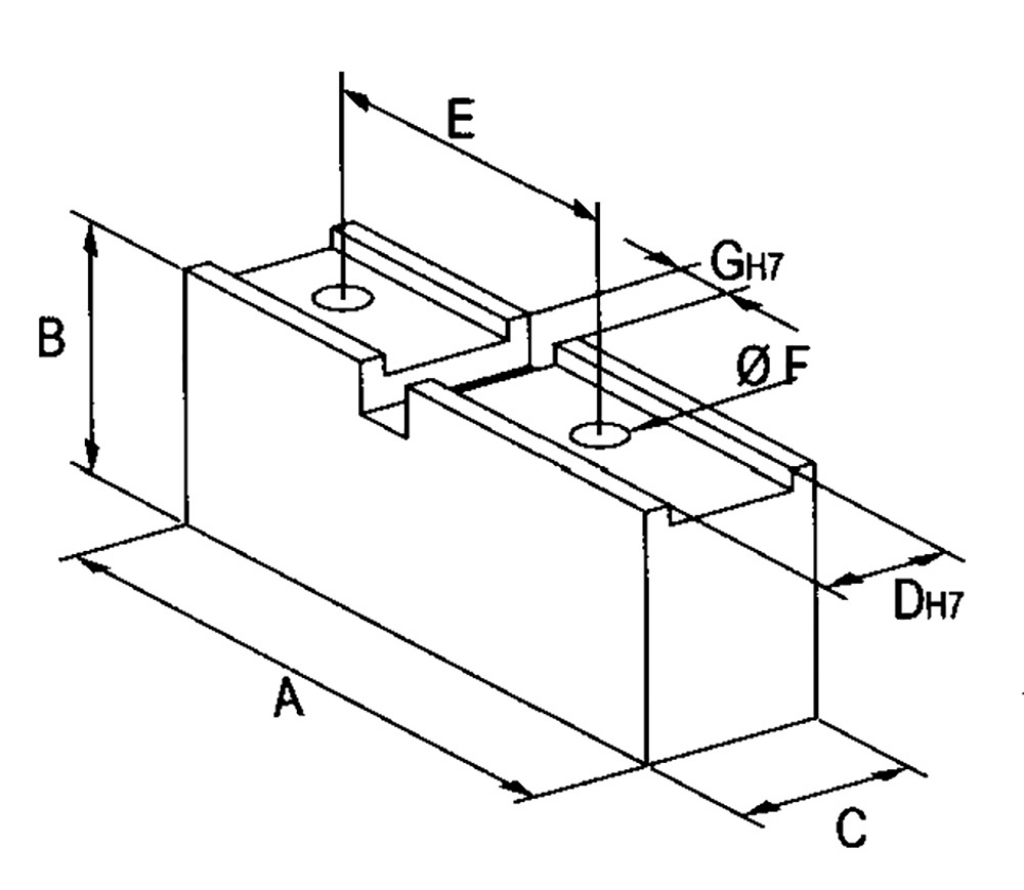

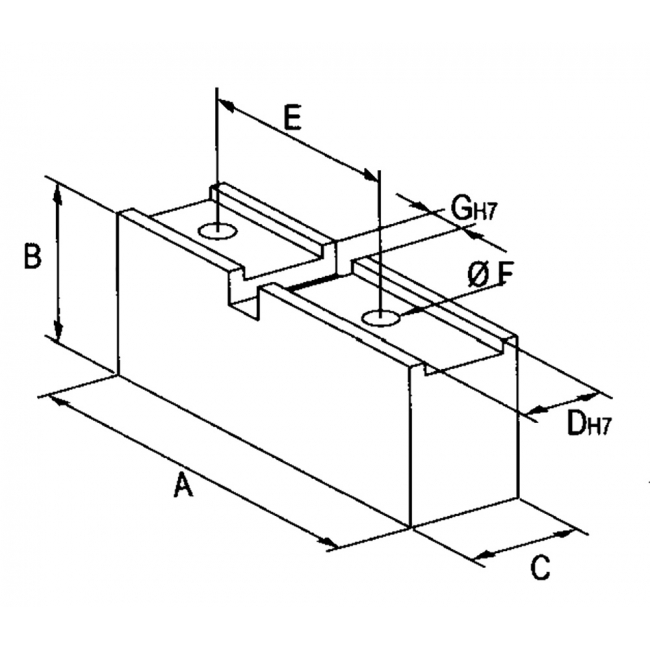

| Ø AUT. | A | B | C | Dh7 | Gh7 | E | Ø F |
|---|---|---|---|---|---|---|---|
| Ø AUT. 125-130 | A 60 | B 30 | C 20 | Dh7 15 | Gh7 6 | E 20 | Ø F 7 |
| Ø AUT. 160 | A 70 | B 35 | C 20 | Dh7 15 | Gh7 6 | E 20 | Ø F 7 |
| Ø AUT. 175 | A 80 | B 40 | C 30 | Dh7 20 | Gh7 10 | E 29 | Ø F 11 |
| Ø AUT. 200-225 | A 95 | B 50 | C 30 | Dh7 20 | Gh7 10 | E 26 | Ø F 11 |
| Ø AUT. 250-275 | A 115 | B 50 | C 35 | Dh7 25 | Gh7 12 | E 32 | Ø F 11 |
| Ø AUT. 300 | A 130 | B 50 | C 35 | Dh7 25 | Gh7 12 | E 32 | Ø F 11 |
| Ø AUT. 375 | A 130 | B 70 | C 40 | Dh7 32 | Gh7 16 | E 40 | Ø F 13 |
