Fial

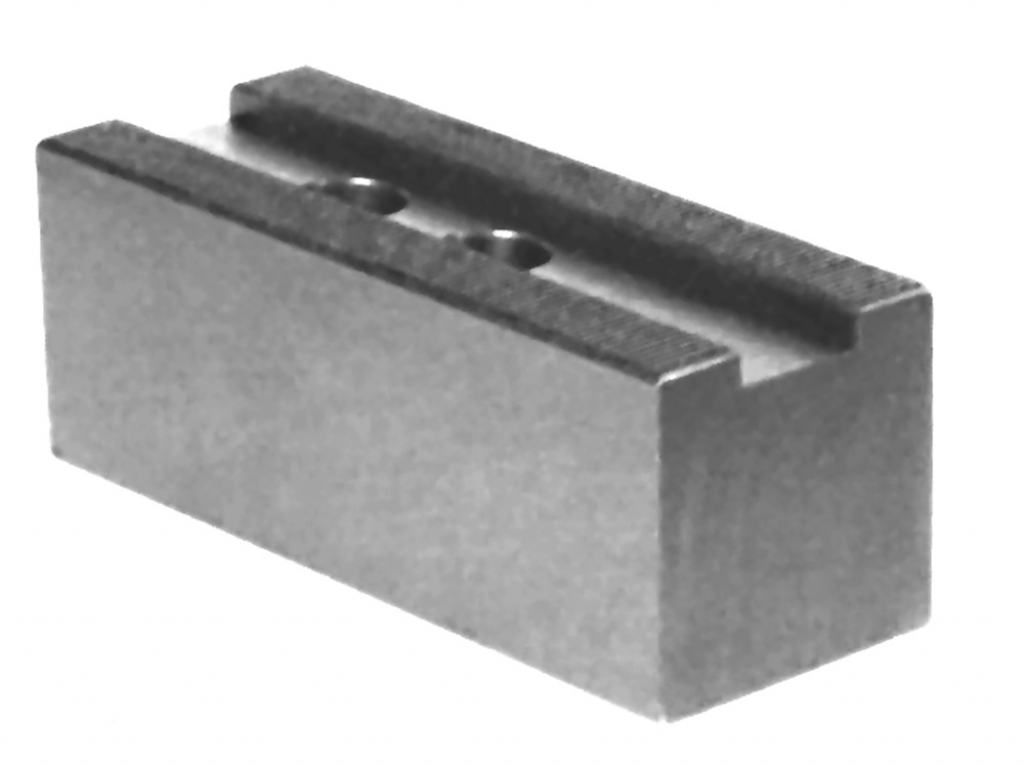

Manual fial type "Z" passo 1/16''x90°

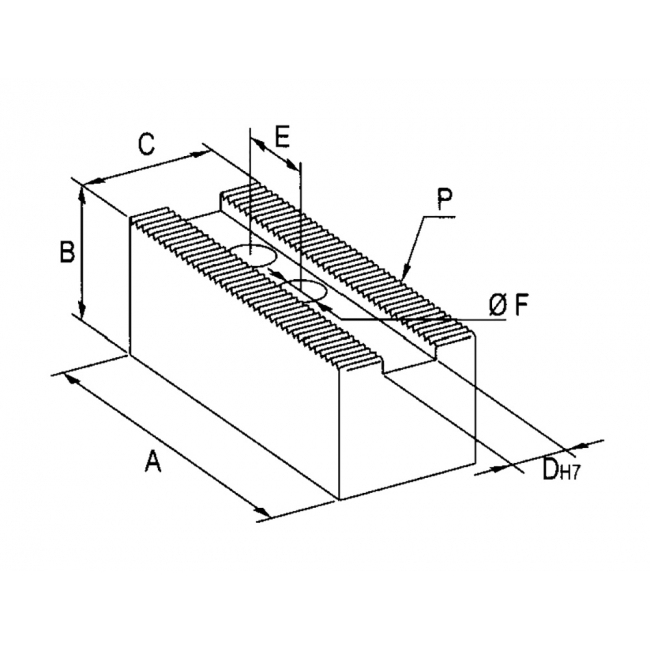

| Ø AUT. | A | B | C | Dh7 | E | Ø F | P |
|---|---|---|---|---|---|---|---|
| Ø AUT. 160 | A 73 | B 35 | C 20 | Dh7 8 | E 19,05 | Ø F 7 | P 1/16''x90° |
| Ø AUT. 180-200 | A 87,3 | B 40 | C 25 | Dh7 10 | E 23,81 | Ø F 9 | P 1/16''x90° |
| Ø AUT. 230 | A 103,2 | B 40 | C 25 | Dh7 10 | E 28,57 | Ø F 9 | P 1/16''x90° |
| Ø AUT. 250-270 | A 117,5 | B 50 | C 30 | Dh7 12 | E 33,34 | Ø F 11 | P 1/16''x90° |
| Ø AUT. 310-350 | A 136,5 | B 60 | C 30 | Dh7 14 | E 36,5 | Ø F 13 | P 1/16''x90° |
