Officina Mariani - Jaws e Accessories per self-centering chunks
Kitagawa ENG

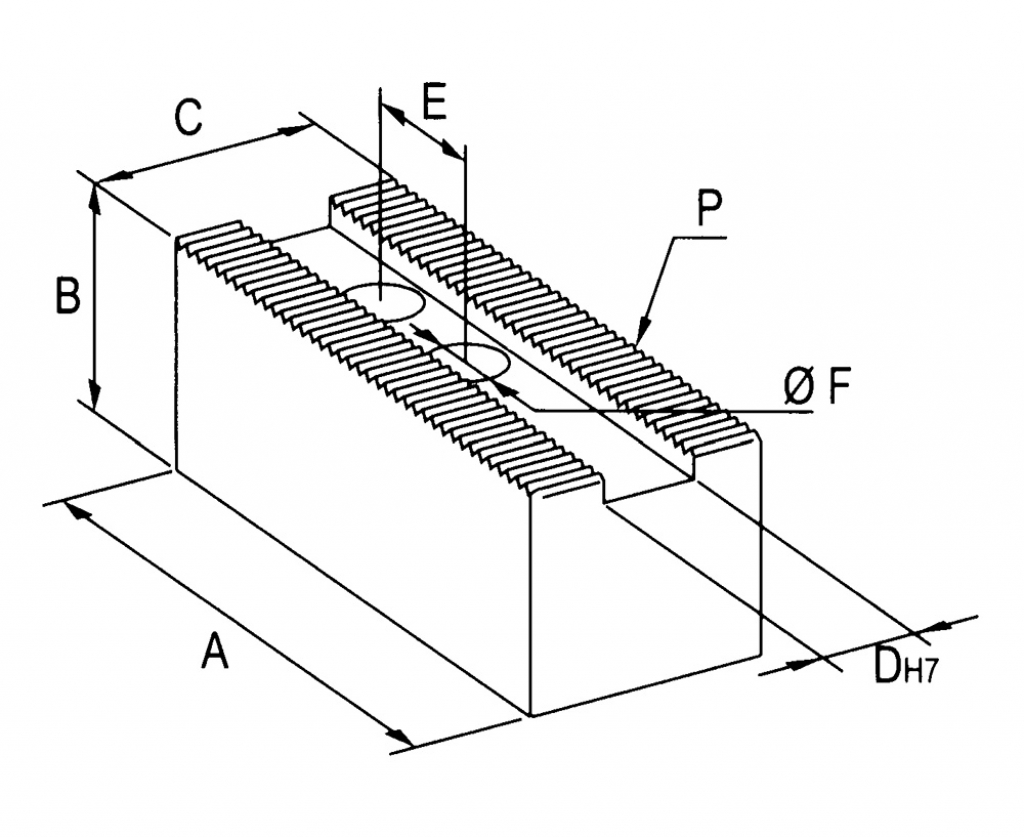

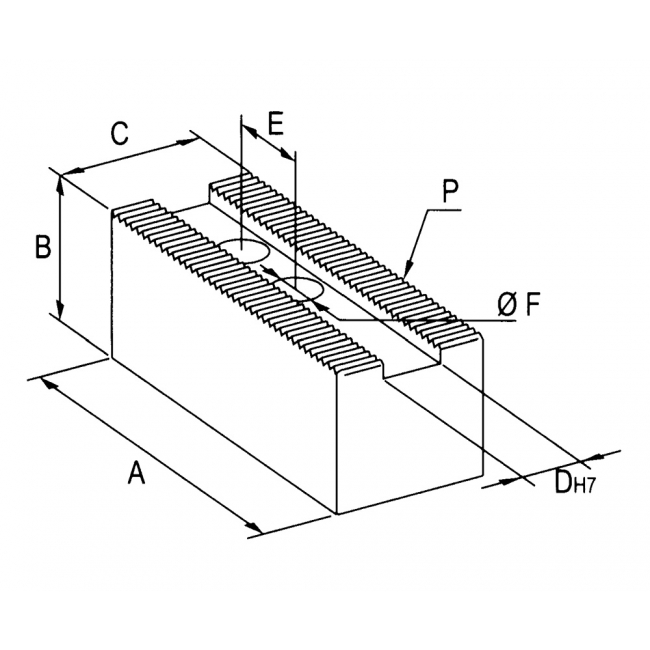

Lenght jaws
| Ø autocentrante | A | B | C | Dh7 | E | Ø F | P |
|---|---|---|---|---|---|---|---|
| Ø autocentrante 152 | A 81 | B 30 | C 30 | Dh7 12 | E 20 | Ø F 11 | P 1,5x60° |
| Ø autocentrante 203 | A 110 | B 40 | C 40 | Dh7 14 | E 25 | Ø F 13 | P 1,5x60° |
| Ø autocentrante 203 | A 120 | B 40 | C 40 | Dh7 14 | E 25 | Ø F 13 | P 1,5x60° |
| Ø autocentrante 203 | A 140 | B 40 | C 40 | Dh7 14 | E 25 | Ø F 13 | P 1,5x60° |
| Ø autocentrante 254 | A 130 | B 40 | C 40 | Dh7 16 | E 30 | Ø F 13 | P 1,5x60° |
| Ø autocentrante 254 | A 150 | B 40 | C 40 | Dh7 16 | E 30 | Ø F 13 | P 1,5x60° |
| Ø autocentrante 254 | A 200 | B 50 | C 50 | Dh7 16 | E 30 | Ø F 13 | P 1,5x60° |
| Ø autocentrante 305 | A 145 | B 50 | C 50 | Dh7 18 | E 30 | Ø F 15 | P 1,5x60° |
| Ø autocentrante 305 | A 160 | B 50 | C 50 | Dh7 18 | E 30 | Ø F 15 | P 1,5x60° |
| Ø autocentrante 305 | A 180 | B 50 | C 50 | Dh7 18 | E 30 | Ø F 15 | P 1,5x60° |
| Ø autocentrante 305 | A 145 | B 50 | C 50 | Dh7 21 | E 30 | Ø F 17 | P 1,5x60° |
| Ø autocentrante 305 | A 160 | B 50 | C 50 | Dh7 21 | E 30 | Ø F 17 | P 1,5x60° |
| Ø autocentrante 305 | A 180 | B 50 | C 50 | Dh7 21 | E 30 | Ø F 17 | P 1,5x60° |
| Ø autocentrante 305 | A 200 | B 50 | C 50 | Dh7 21 | E 30 | Ø F 17 | P 1,5x60° |
| Ø autocentrante 381 | A 200 | B 70 | C 70 | Dh7 22 | E 43 | Ø F 21 | P 1,5x60° |
| Ø autocentrante 381 | A 230 | B 70 | C 70 | Dh7 22 | E 43 | Ø F 21 | P 1,5x60° |
