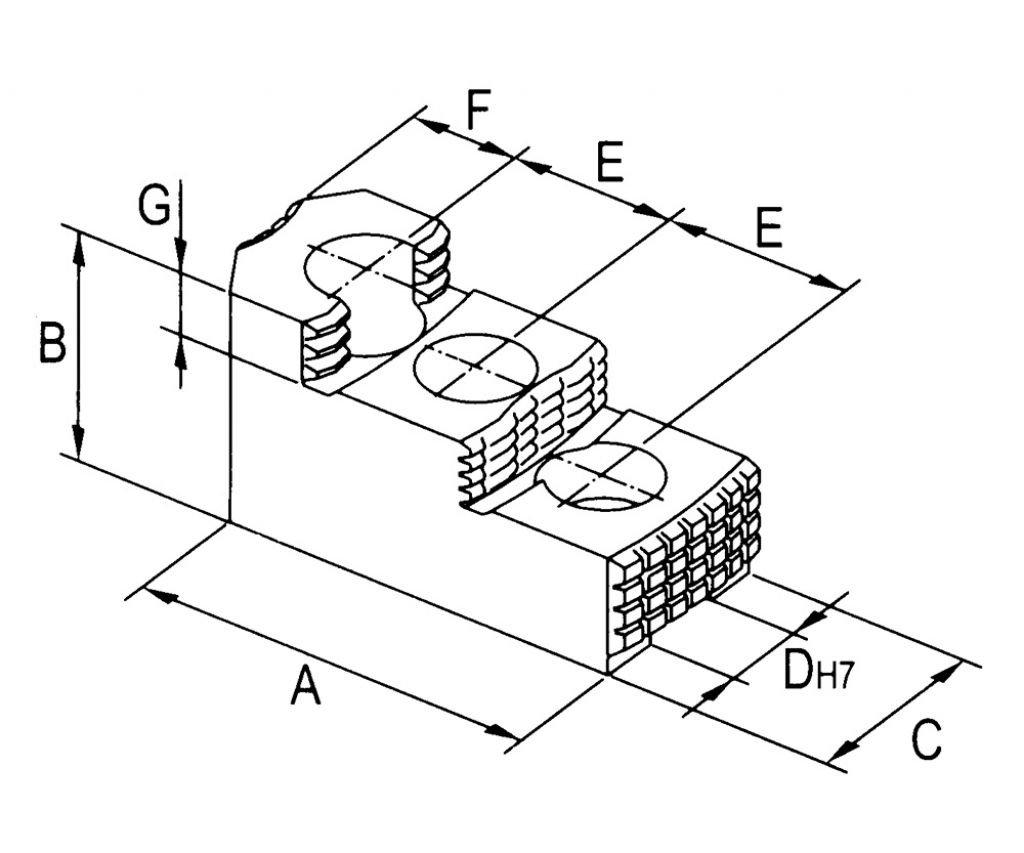

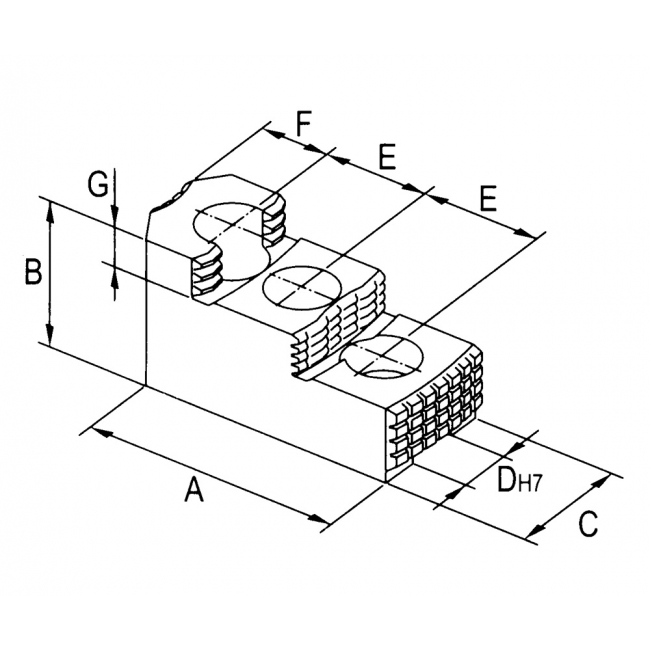

Hard reversible jaws step type
| Ø AUTOCENTRANTE | A | B | C | Dh7 | E | Ø F | P | G |
|---|---|---|---|---|---|---|---|---|
| Ø AUTOCENTRANTE *110-127 | A 53 | B 27,5 | C 23 | Dh7 10 | E 14 | Ø F 9 | P 1,5x60° | G 10 |
| Ø AUTOCENTRANTE *152 | A 66,6 | B 36 | C 31 | Dh7 12 | E 20 | Ø F 11 | P 1,5x60° | G 12 |
| Ø AUTOCENTRANTE 203 | A 86 | B 51 | C 35 | Dh7 14 | E 25 | Ø F 13 | P 1,5x60° | G 12 |
| Ø AUTOCENTRANTE 254 | A 99,5 | B 54 | C 40 | Dh7 16 | E 30 | Ø F 13 | P 1,5x60° | G 13 |
| Ø AUTOCENTRANTE *305 | A 97,5 | B 55 | C 50 | Dh7 18 | E 30 | Ø F 15 | P 1,5x60° | G 17 |
| Ø AUTOCENTRANTE *305 | A 118 | B 52 | C 50 | Dh7 21 | E 30 | Ø F 17 | P 1,5x60° | G 17 |
| Ø AUTOCENTRANTE *381 | A 143 | B 86 | C 62 | Dh7 22 | E 43 | Ø F 21 | P 1,5x60° | G 20 |
| Ø AUTOCENTRANTE *381 | A 149 | B 86 | C 62 | Dh7 25,5 | E 43 | Ø F 21 | P 1,5x60° | G 20 |
| Ø AUTOCENTRANTE *530 | A 159,5 | B 90 | C 90 | Dh7 25 | E 50 | Ø F 21 | P 3x60° | G 40 |
*These types are one step
