Officina Mariani - Jaws e Accessories per self-centering chunks
Autoblok-SMW

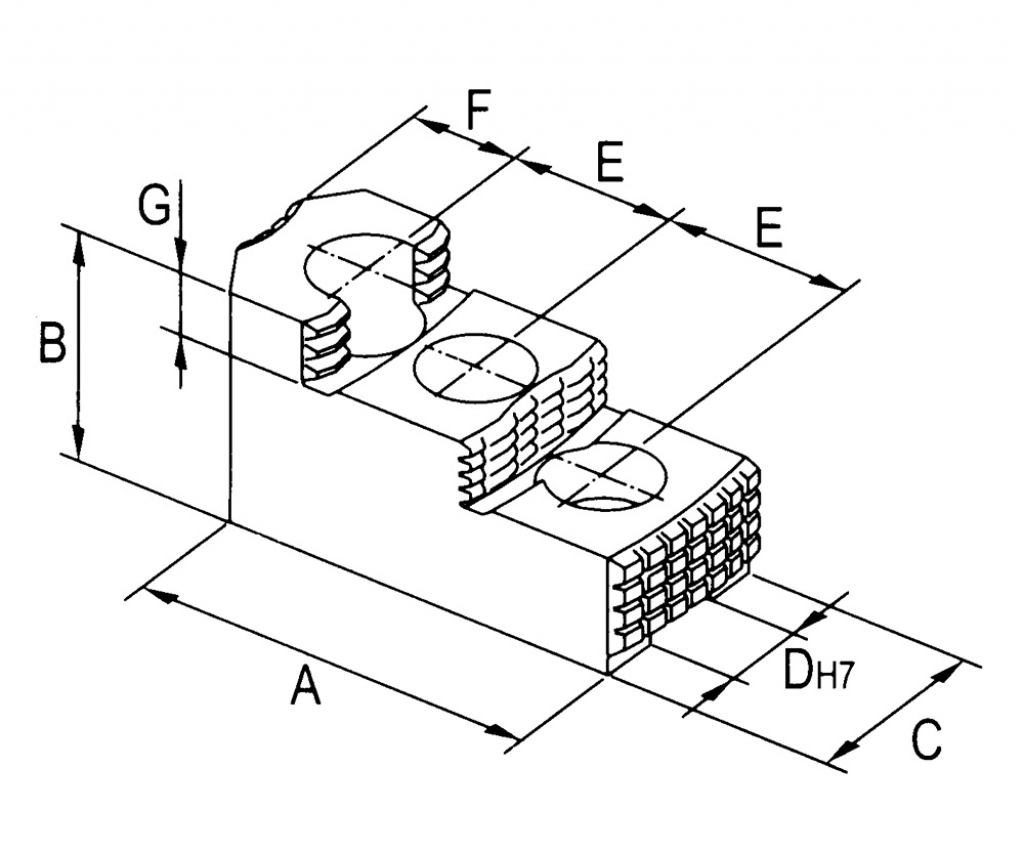

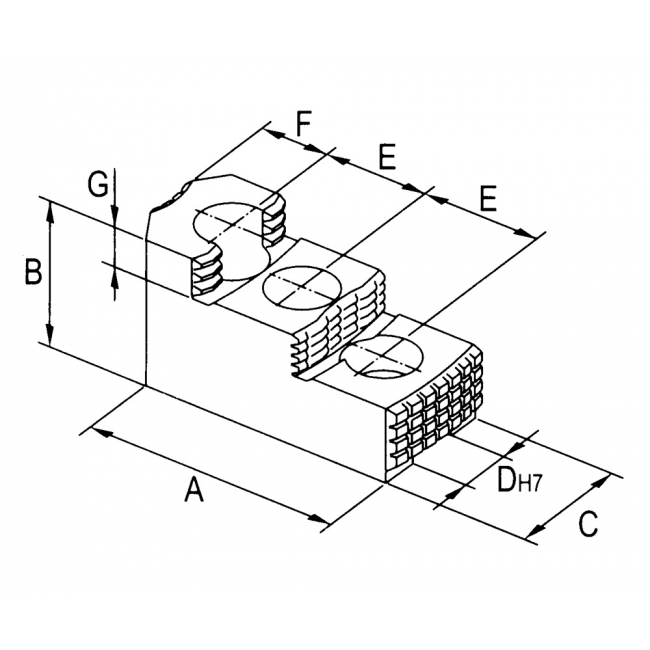

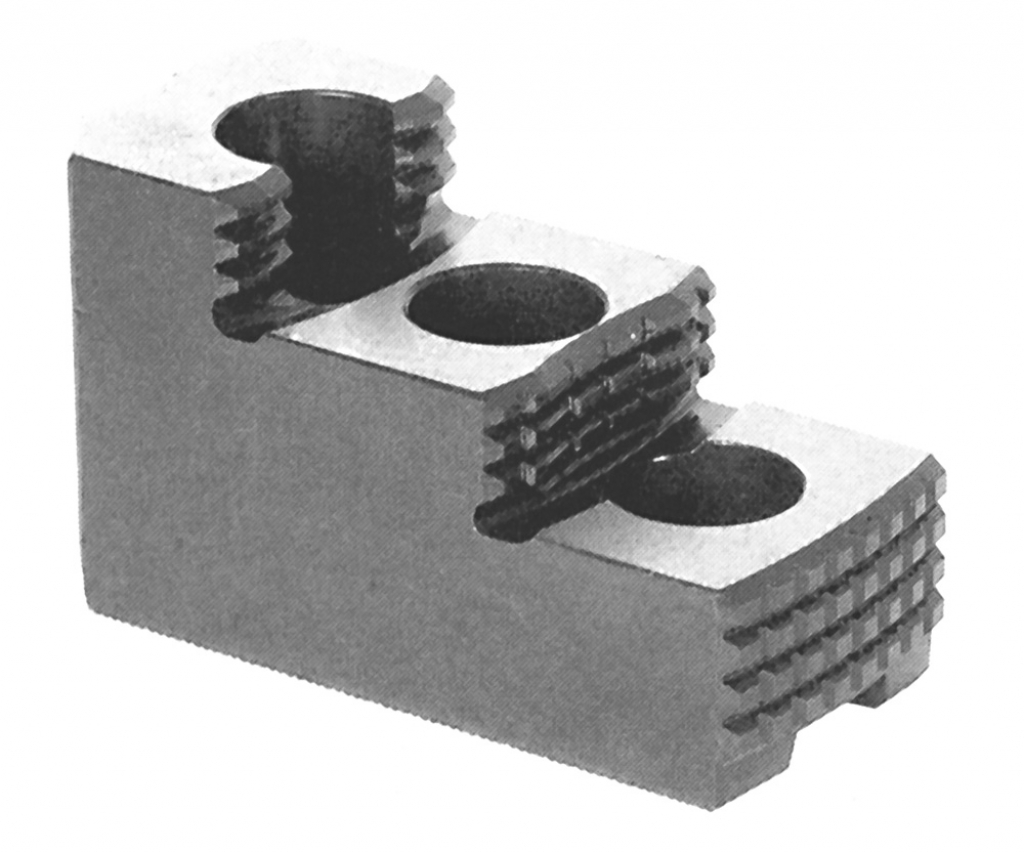

Hard reversible jaws step type P=1,5x60°
| Ø autocentrante | A | B | C | Dh7 | E | F | G | P |
|---|---|---|---|---|---|---|---|---|
| Ø autocentrante 125-130 | A 58 | B 34 | C 30 | Dh7 12 | E 16 | F 13 | G 8,5 | P 1,5x60° |
| Ø autocentrante 165-170 | A 67 | B 39 | C 34 | Dh7 12 | E 20 | F 14 | G 10 | P 1,5x60° |
| Ø autocentrante 210 | A 86 | B 45 | C 40 | Dh7 14 | E 25 | F 19 | G 10,5 | P 1,5x60° |
| Ø autocentrante 250 | A 100 | B 56 | C 45 | Dh7 16 | E 30 | F 23 | G 15,5 | P 1,5x60° |
| Ø autocentrante 315 | A 105 | B 56 | C 45 | Dh7 21 | E 30 | F 26 | G 13,5 | P 1,5x60° |
| Ø autocentrante 400 | A 145 | B 73 | C 55 | Dh7 25,5 | E 38 | F 46 | G 32 | P 1,5x60° |
| Ø autocentrante 400 | A 140 | B 75 | C 60 | Dh7 22 | E 38 | F 38 | G 19 | P 1,5x60° |
