Officina Mariani - Jaws e Accessories per self-centering chunks
Omap TRIBLOK - GFB

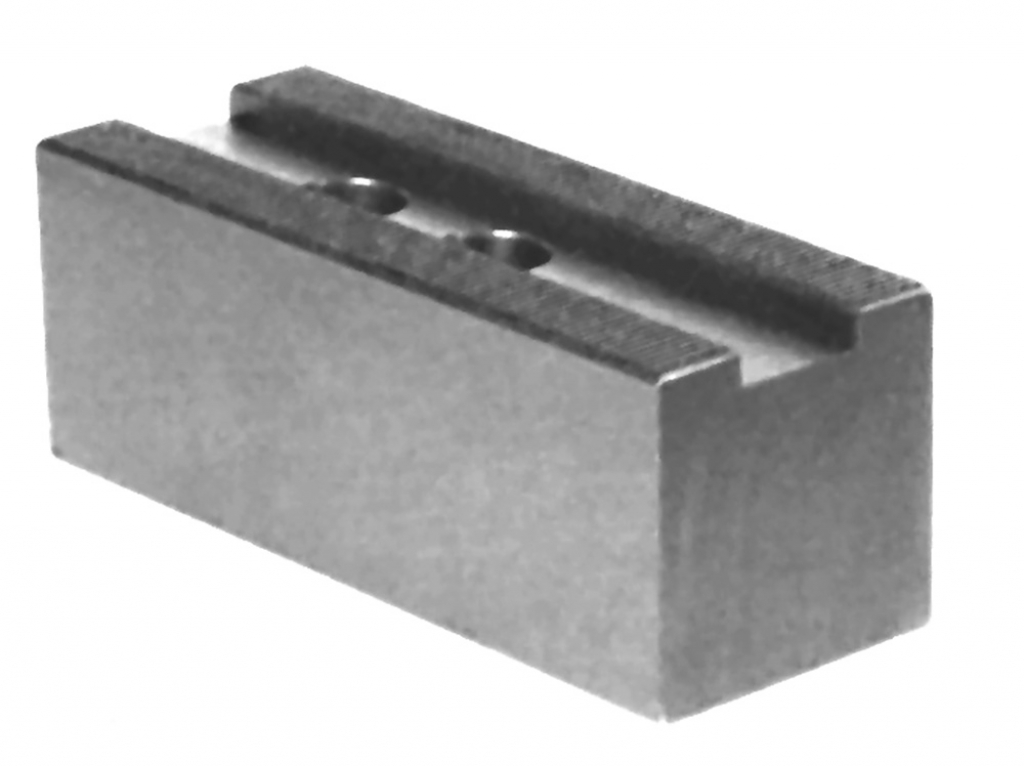

GFB Manual chuck

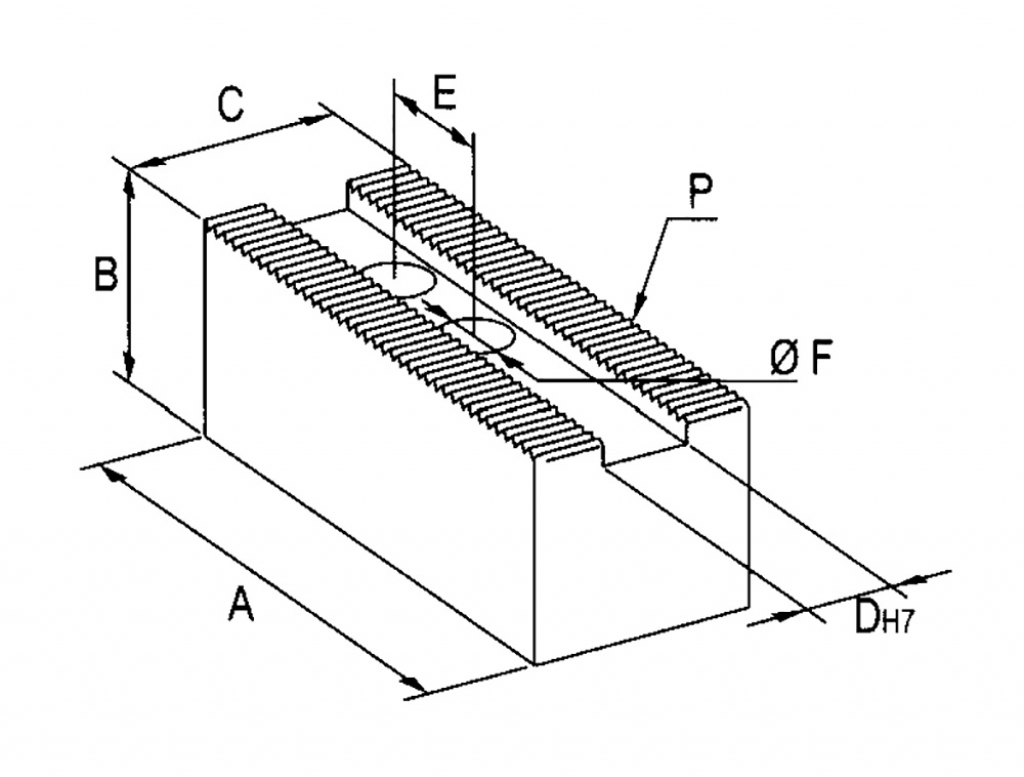

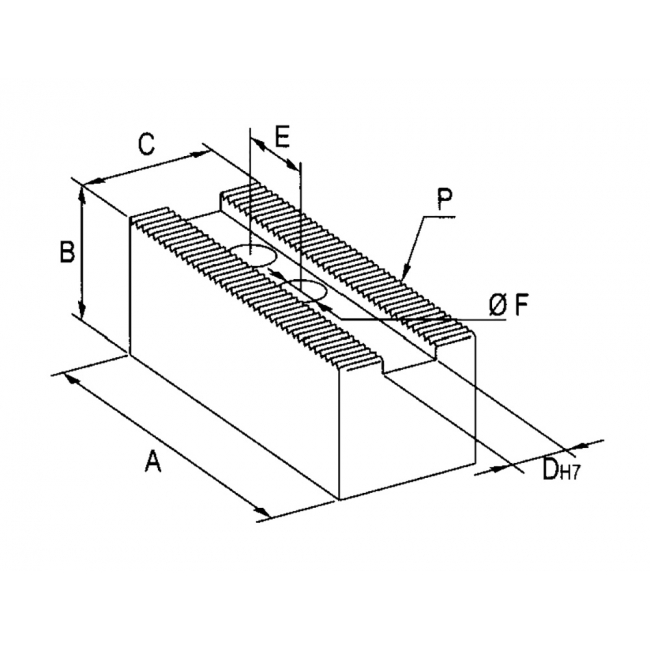

| Ø AUT. | A | B | C | Dh7 | E | Ø F | P |
|---|---|---|---|---|---|---|---|
| Ø AUT. 105 | A 50 | B 25 | C 15 | Dh7 5,3 | E 12 | Ø F 5 | P 2,5x60° |
| Ø AUT. 130 | A 60 | B 30 | C 20 | Dh7 6,2 | E 15 | Ø F 6 | P 2,5x60° |
| Ø AUT. 160 | A 80 | B 30 | C 20 | Dh7 7,5 | E 18 | Ø F 7 | P 2,5x60° |
| Ø AUT. 190-200 | A 100 | B 40 | C 25 | Dh7 10,5 | E 25 | Ø F 9 | P 2,5x60° |
| Ø AUT. 230-250 | A 115 | B 40 | C 25 | Dh7 12,2 | E 30 | Ø F 11 | P 2,5x60° |
| Ø AUT. 270 | A 135 | B 50 | C 30 | Dh7 12,2 | E 30 | Ø F 11 | P 2,5x60° |
| Ø AUT. 310 | A 150 | B 50 | C 30 | Dh7 12,2 | E 30 | Ø F 11 | P 2,5x60° |
