CMT

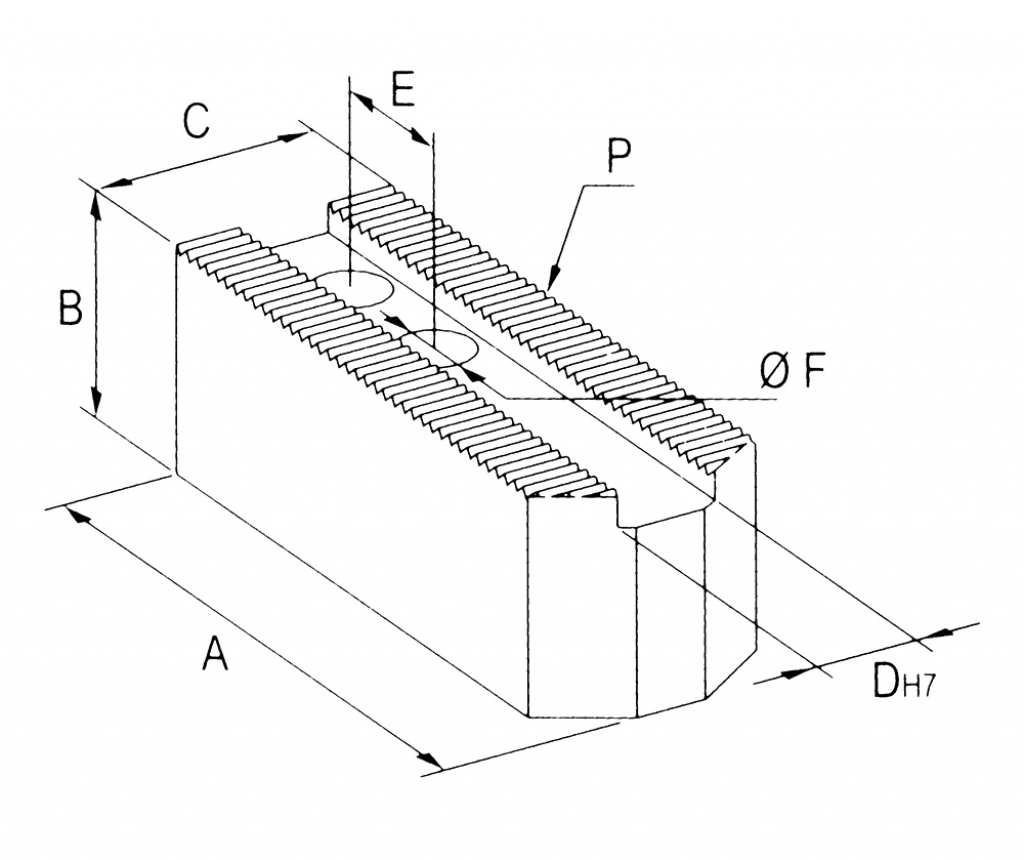

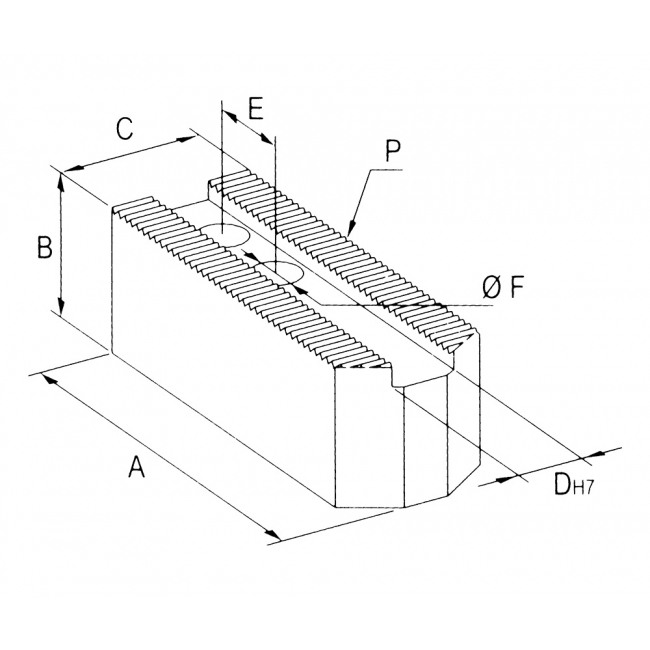

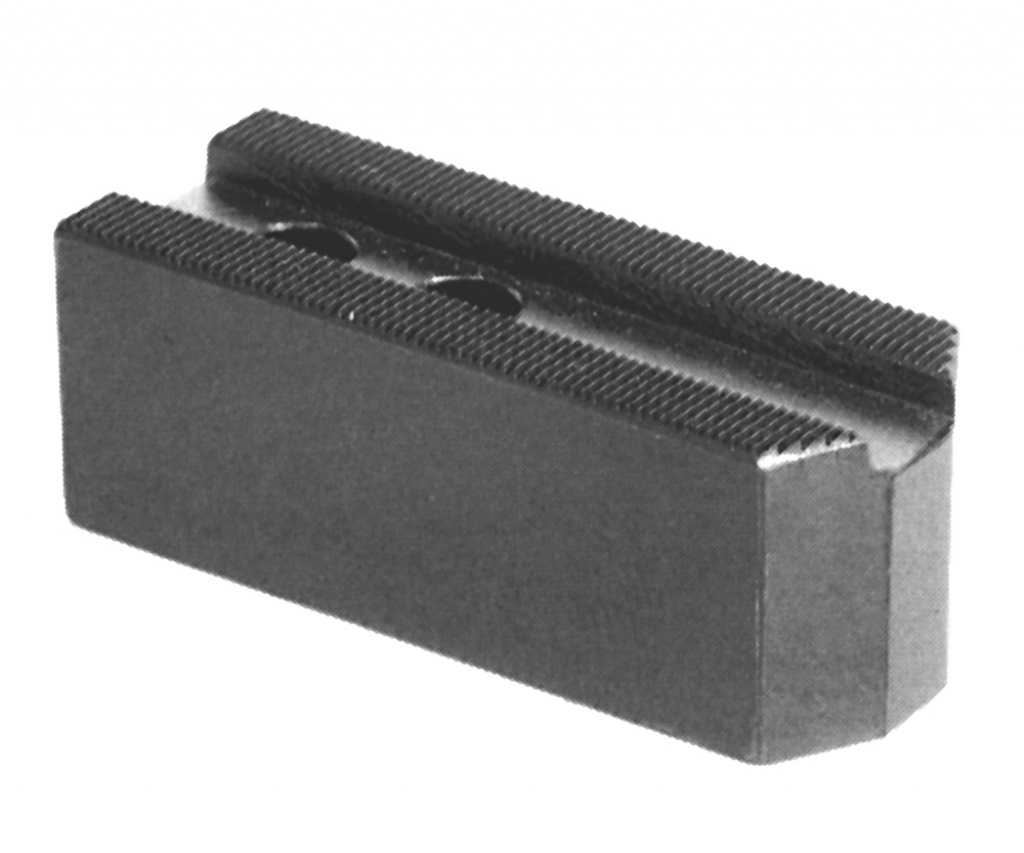

CMT Pneumatic hydraulic P=2,5x60°
| Ø AUT. | A | B | C | Dh7 | E | F | P |
|---|---|---|---|---|---|---|---|
| Ø AUT. 140 | A 65 | B 25 | C 25 | Dh7 10 | E 36 | F 9 | P 2,5x60° |
| Ø AUT. 170 | A 80 | B 30 | C 30 | Dh7 10 | E 36 | F 9 | P 2,5x60° |
| Ø AUT. 200 | A 90 | B 35 | C 35 | Dh7 10 | E 36 | F 9 | P 2,5x60° |
| Ø AUT. 230 | A 100 | B 40 | C 40 | Dh7 12 | E 50 | F 11 | P 2,5x60° |
| Ø AUT. 250-270 | A 125 | B 40 | C 40 | Dh7 12 | E 50 | F 11 | P 2,5x60° |
| Ø AUT. 300-330 | A 120 | B 60 | C 60 | Dh7 18 | E 50 | F 13 | P 2,5x60° |
| Ø AUT. 400 | A 150 | B 60 | C 60 | Dh7 20 | E 75 | F 17 | P 2,5x60° |
