Officina Mariani - Jaws e Accessories per self-centering chunks
CMT

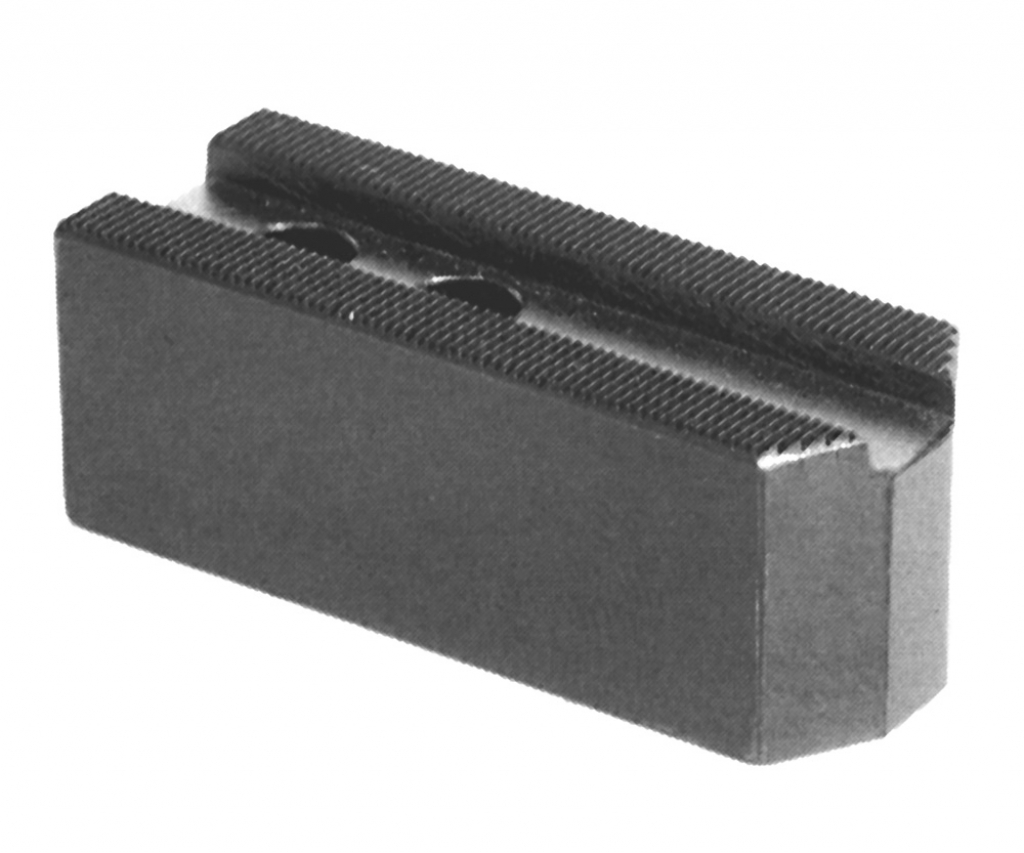

CMT Pneumatic hydraulic P=1/16''x90°

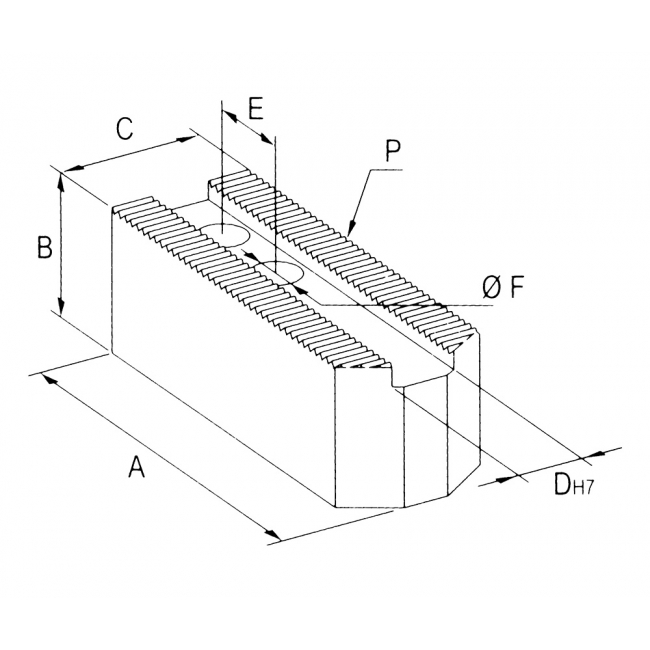

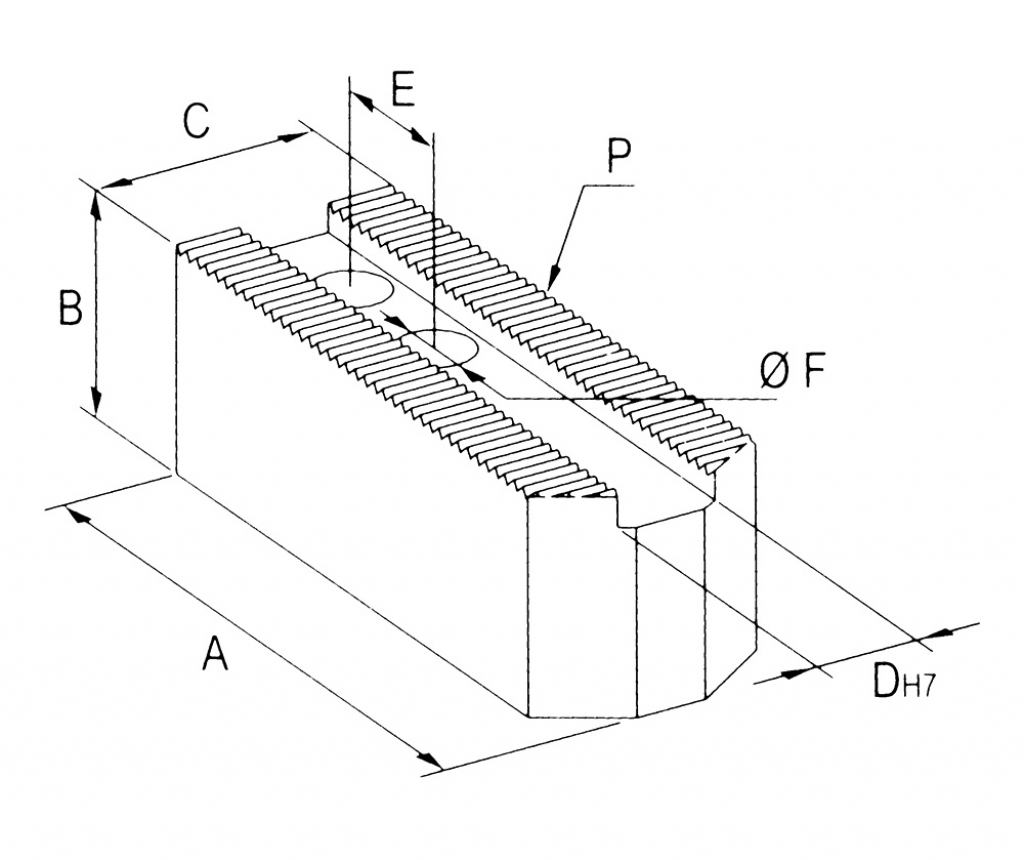

| Ø AUT. | A | B | C | Dh7 | E | Ø F | P |
|---|---|---|---|---|---|---|---|
| Ø AUT. 150 | A 65 | B 25 | C 25 | Dh7 10 | E 16 | Ø F 9 | P 1,16x90° |
| Ø AUT. 200 | A 90 | B 40 | C 40 | Dh7 12 | E 38 | Ø F 11 | P 1,16x90° |
| Ø AUT. 250 | A 115 | B 50 | C 50 | Dh7 21 | E 36 | Ø F 15 | P 1,16x90° |
| Ø AUT. 315 | A 140 | B 50 | C 50 | Dh7 21 | E 36 | Ø F 15 | P 1,16x90° |
| Ø AUT. 400 | A 145 | B 60 | C 60 | Dh7 20 | E 75 | Ø F 17 | P 1,16x90° |
