Autoblok-SMW
Autoblok-smw Ø 250 F. P.

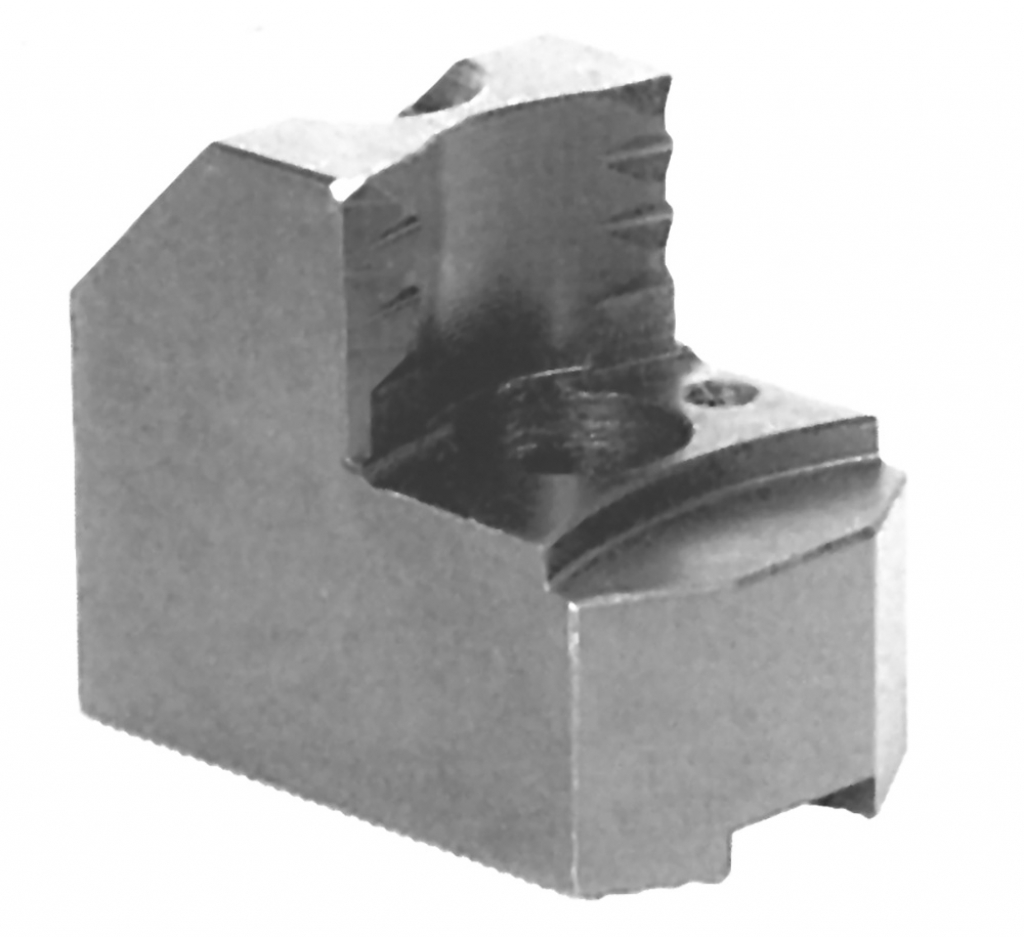

Hard jams for clamping fough part

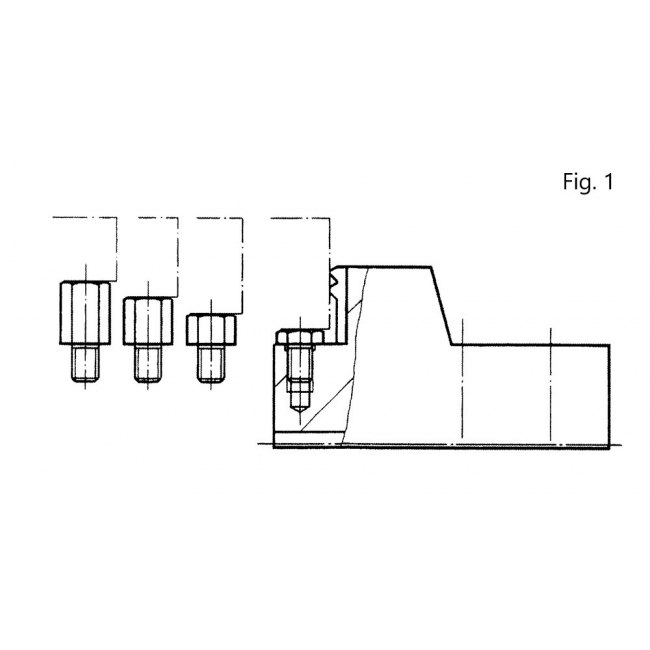

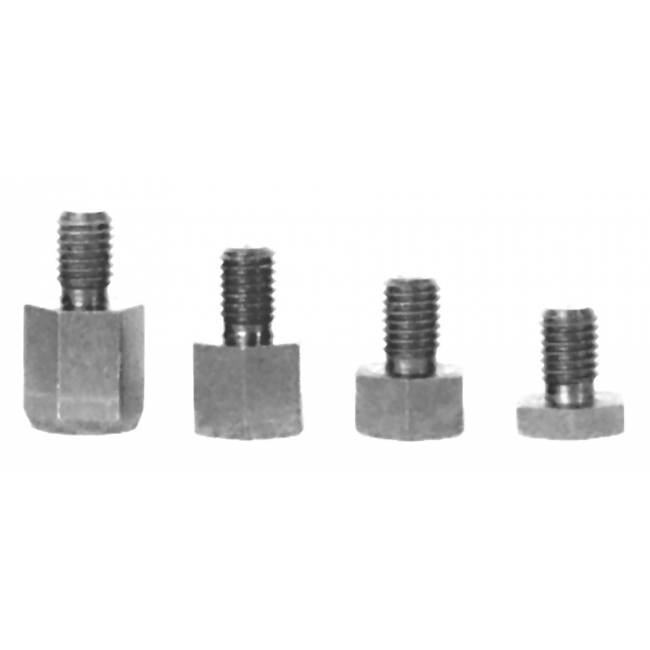

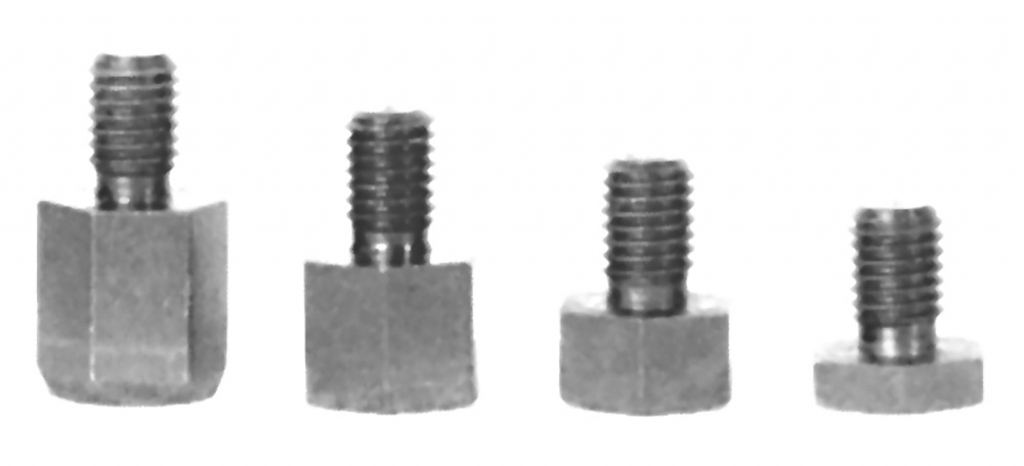

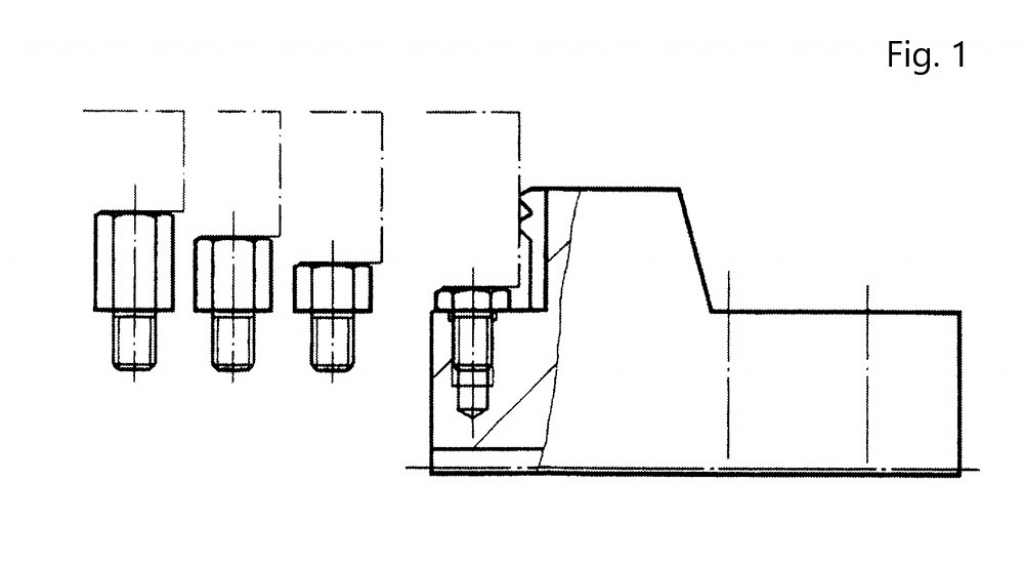

- Fig. 1: Different clamping depths o the same set of jaws through exchangeable workpiece stops

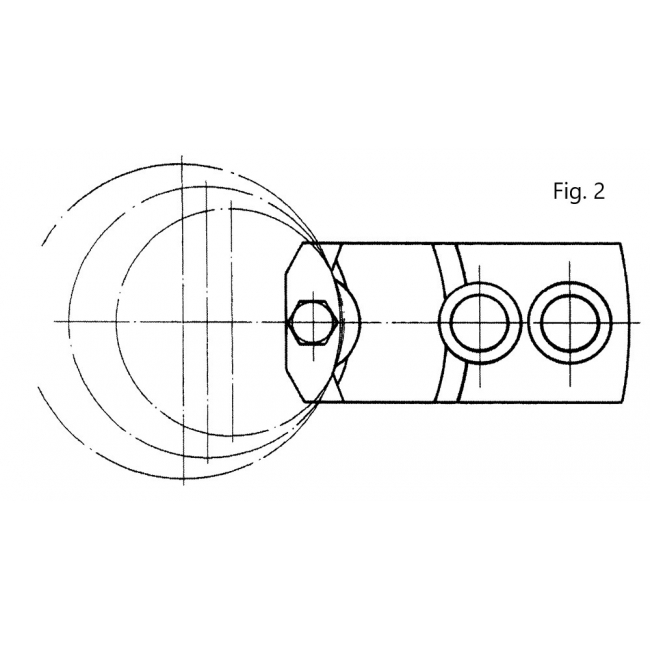

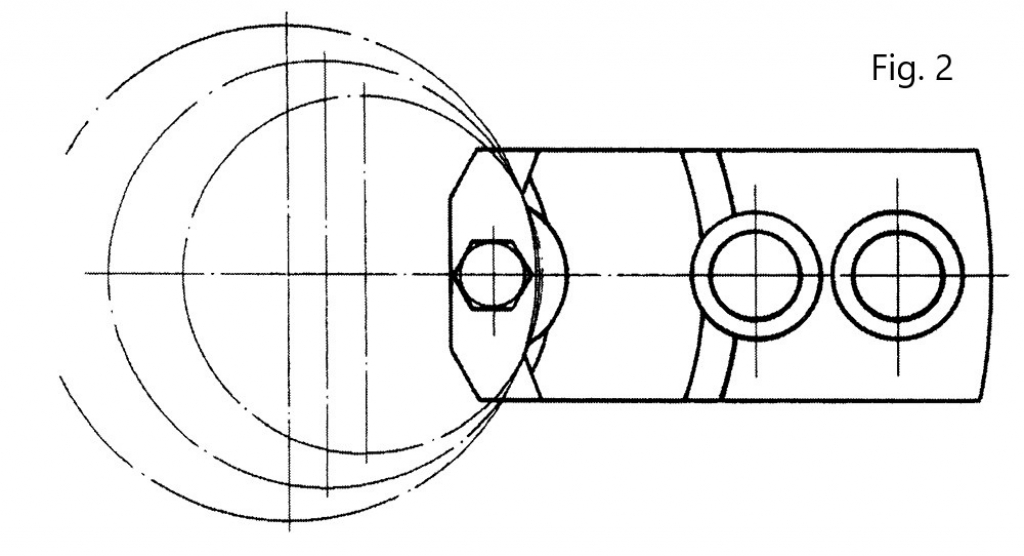

- Fig. 2: Only one set necessary to cover a large clamping range

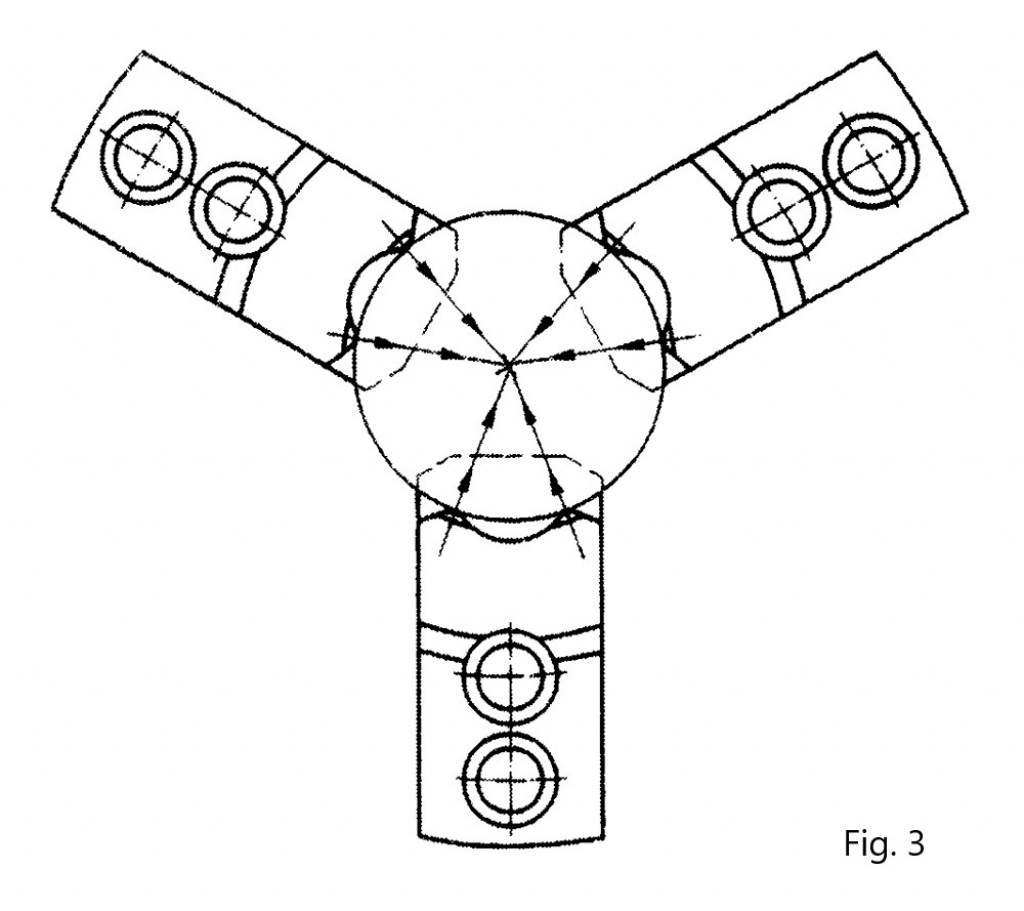

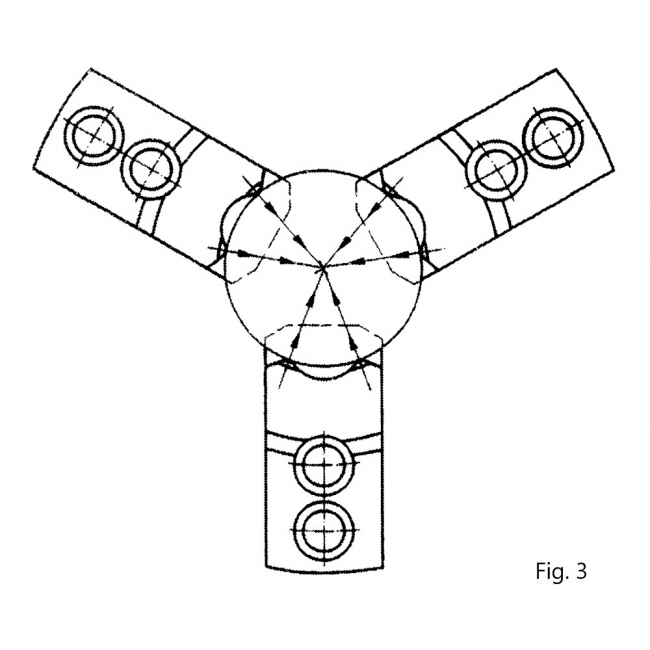

- Fig. 3: Absolute safety, via the concentric angle of the jaw teeth

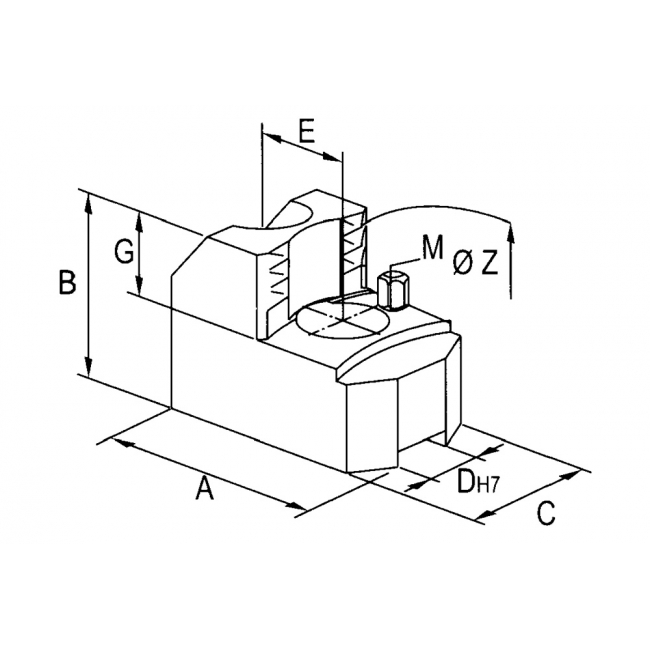

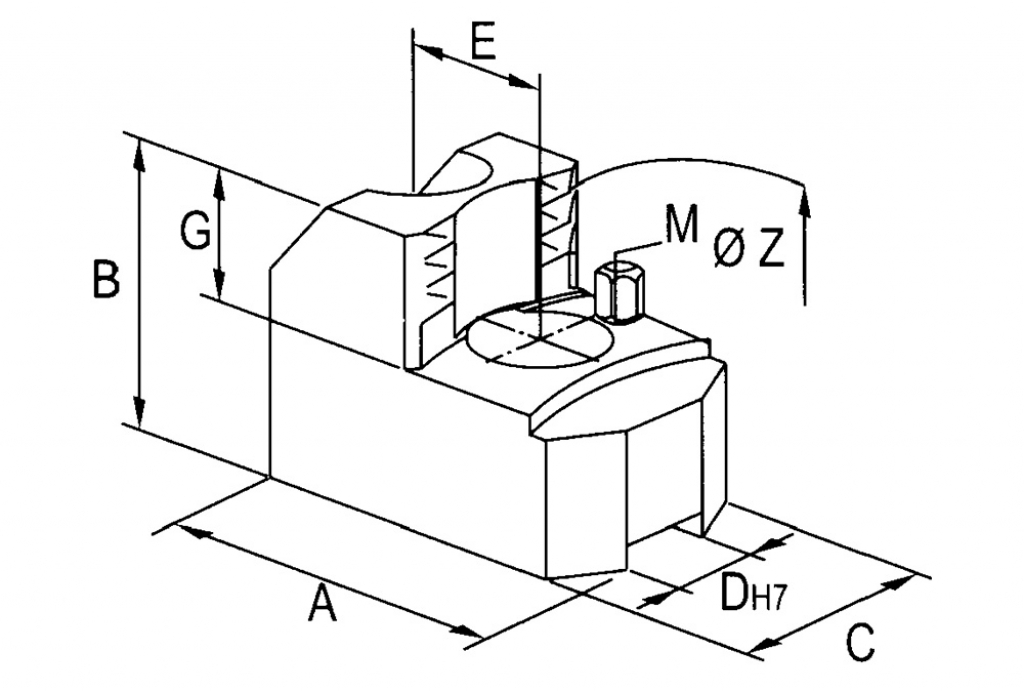

| Campo di bloccaggio Ø Z | A | B | C | Dh7 | E | Ø F | P | G | M |
|---|---|---|---|---|---|---|---|---|---|
| Campo di bloccaggio Ø Z 40-70 | A 105 | B 48 | C 45 | Dh7 21 | E 30 | Ø F 17-25 | P 1/16''x90° | G 25 | M M 6 |
| Campo di bloccaggio Ø Z 70-120 | A 90 | B 50 | C 45 | Dh7 21 | E 30 | Ø F 17-25 | P 1/16''x90° | G 25 | M M 8 |
| Campo di bloccaggio Ø Z 120-170 | A 75 | B 58 | C 50 | Dh7 21 | E 30 | Ø F 17-25 | P 1/16''x90° | G 25 | M M 8 |
| Campo di bloccaggio Ø Z 170-230 | A 85 | B 58 | C 60 | Dh7 21 | E 30 | Ø F 17-25 | P 1/16''x90° | G 25 | M M 8 |
| Campo di bloccaggio Ø Z 200-280 | A 108 | B 65 | C 60 | Dh7 21 | E 30 | Ø F 17-25 | P 1 | G 30 | M M 10 |
